Design BA Thesis
Project
Wearable Computers
Challenge
Through an extensive interrogation of human flourishing, progress, social dynamics, game theory, and the evolution of computers, it became clear that rethinking the physical forms of daily devices can lead to a healthier and more present society, where people and computers act in concert with one another. This project offers a glimpse into the near future where computers are not addictive, where they don't force bad posture, and where they take into account human strengths as well as weaknesses while being contextually aware and helpful.
Solution
2024
Swipe to see images
N°1

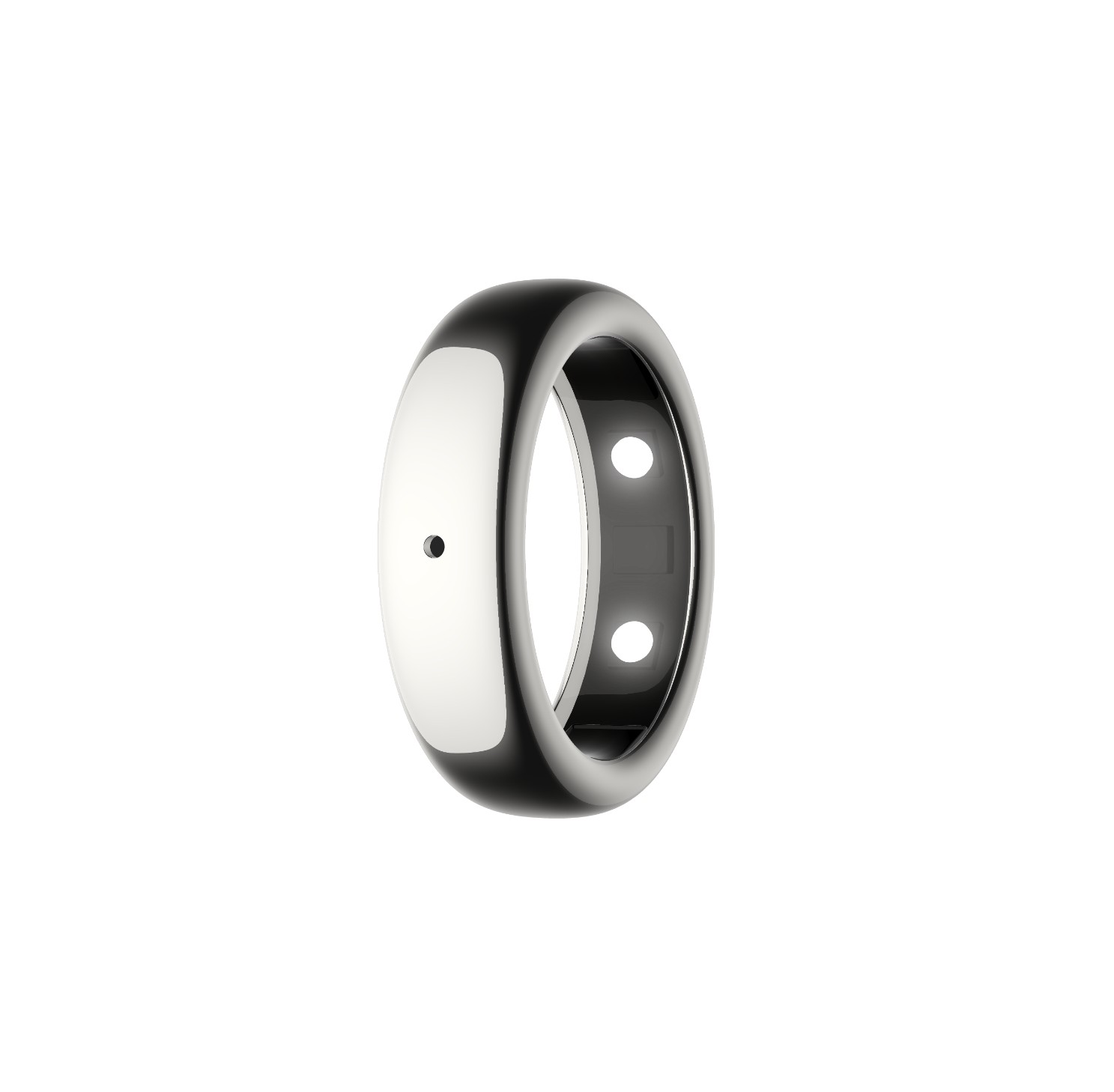

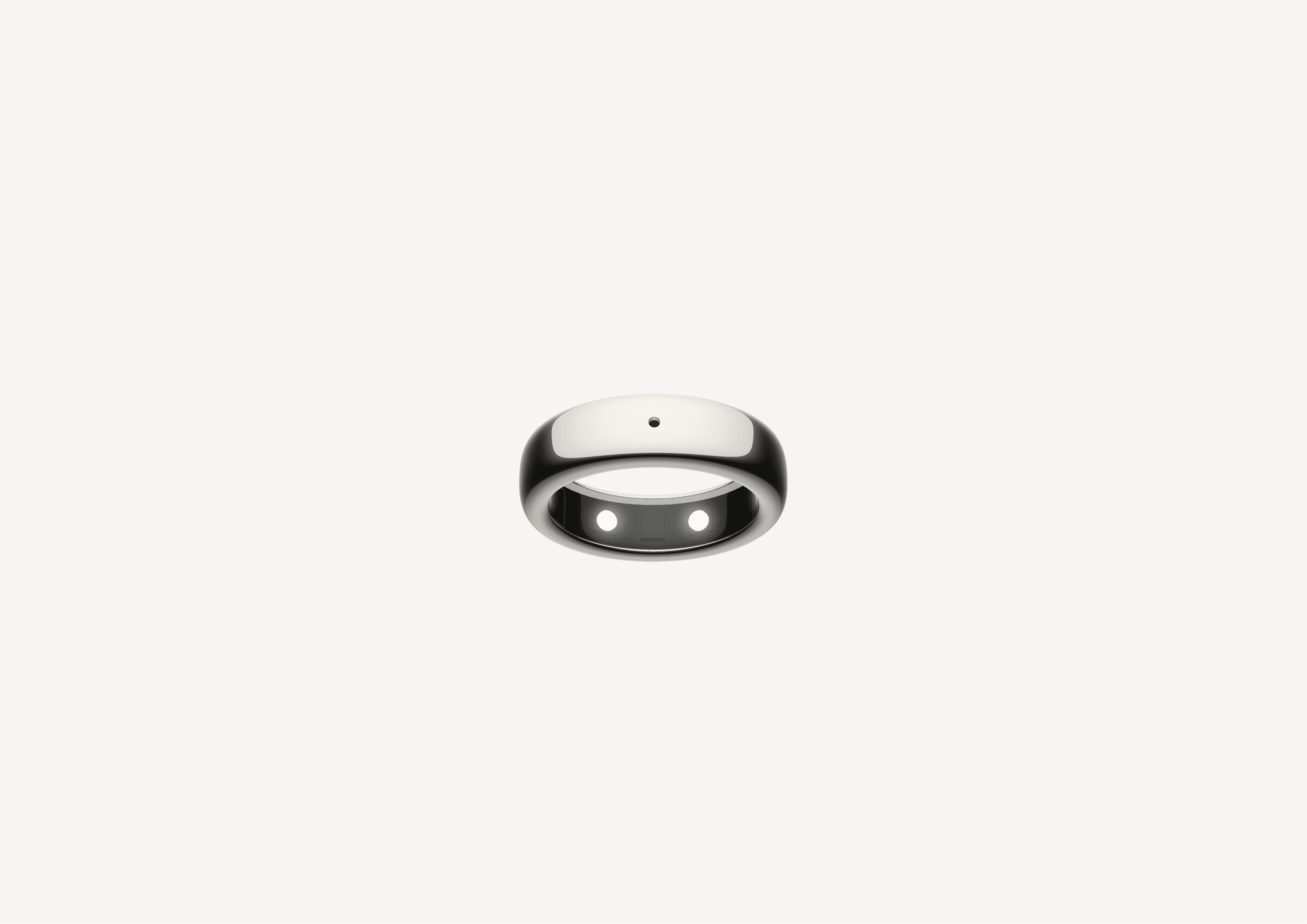

Ring

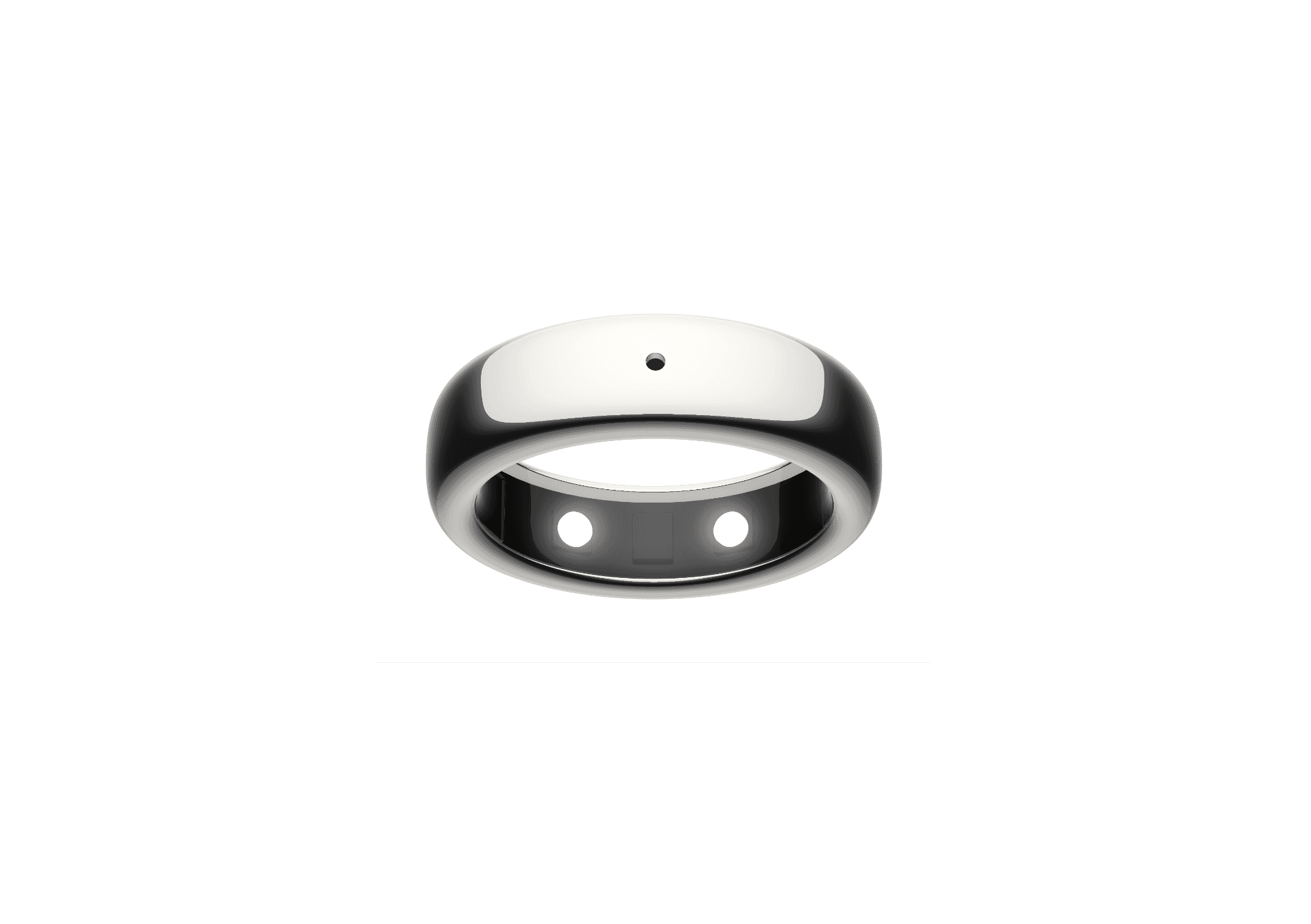

It's the first stage of immersion — always on, always ambient. As the most minimal wearable computer, it is designed to be worn constantly. It does not alter the wearer's reality at all.
Ring is purely an input device. It tracks biometrics, and the wearer can whisper thoughts and commands into it. A haptic motor provides the only output: a subtle confirmation that the system heard you.
Cold-rolled and polished 316L stainless steel frame is treated with a DLC PVD coating to achieve a warm silver shade. The electronics are encrusted in a non-allergenic transparent BPA-free polymer.
Cold-rolled and polished 316L stainless steel frame is treated with a DLC PVD coating to achieve a warm silver shade. The electronics are encrusted in a non-allergenic transparent BPA-free polymer.
N°2

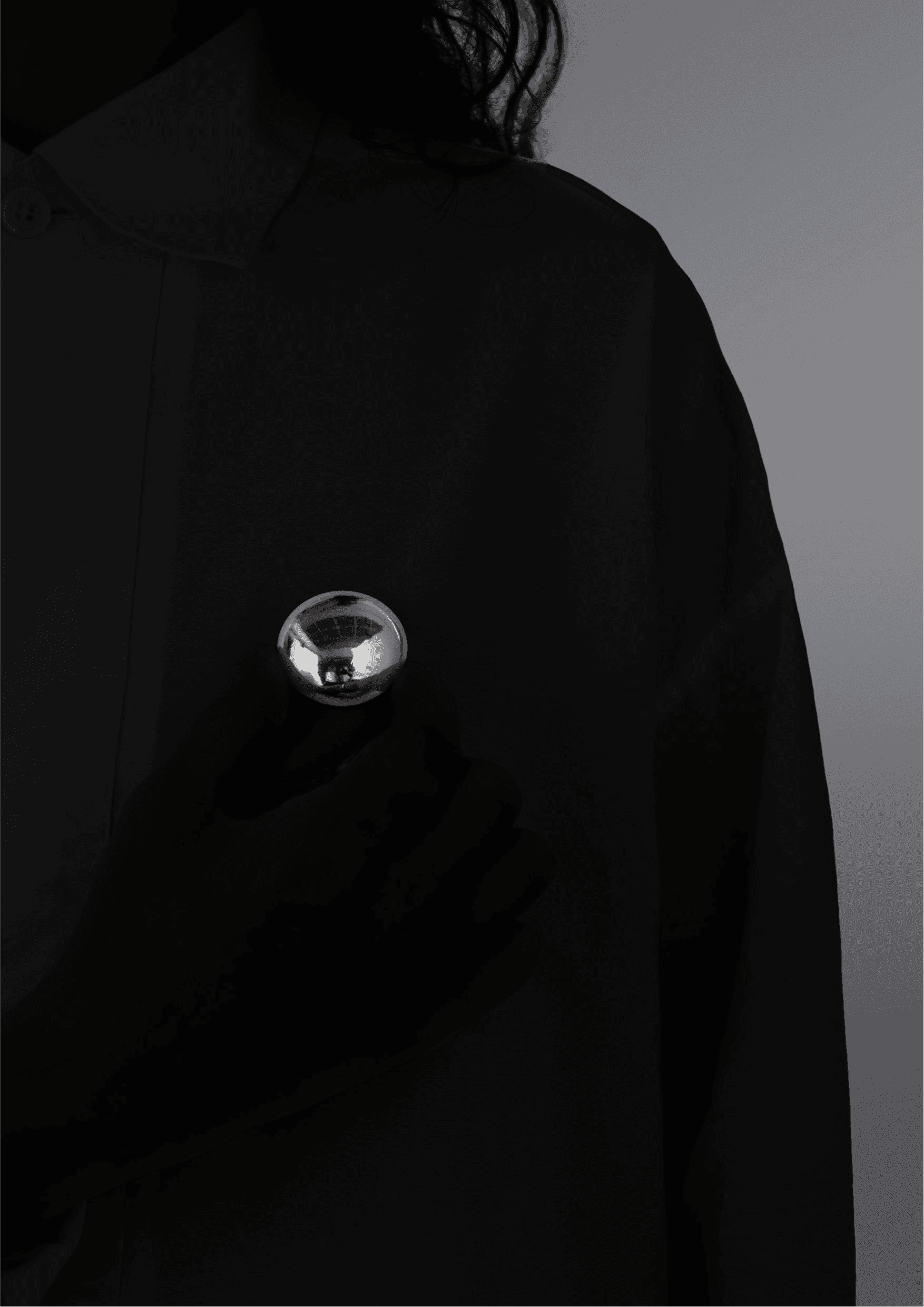

Amulet

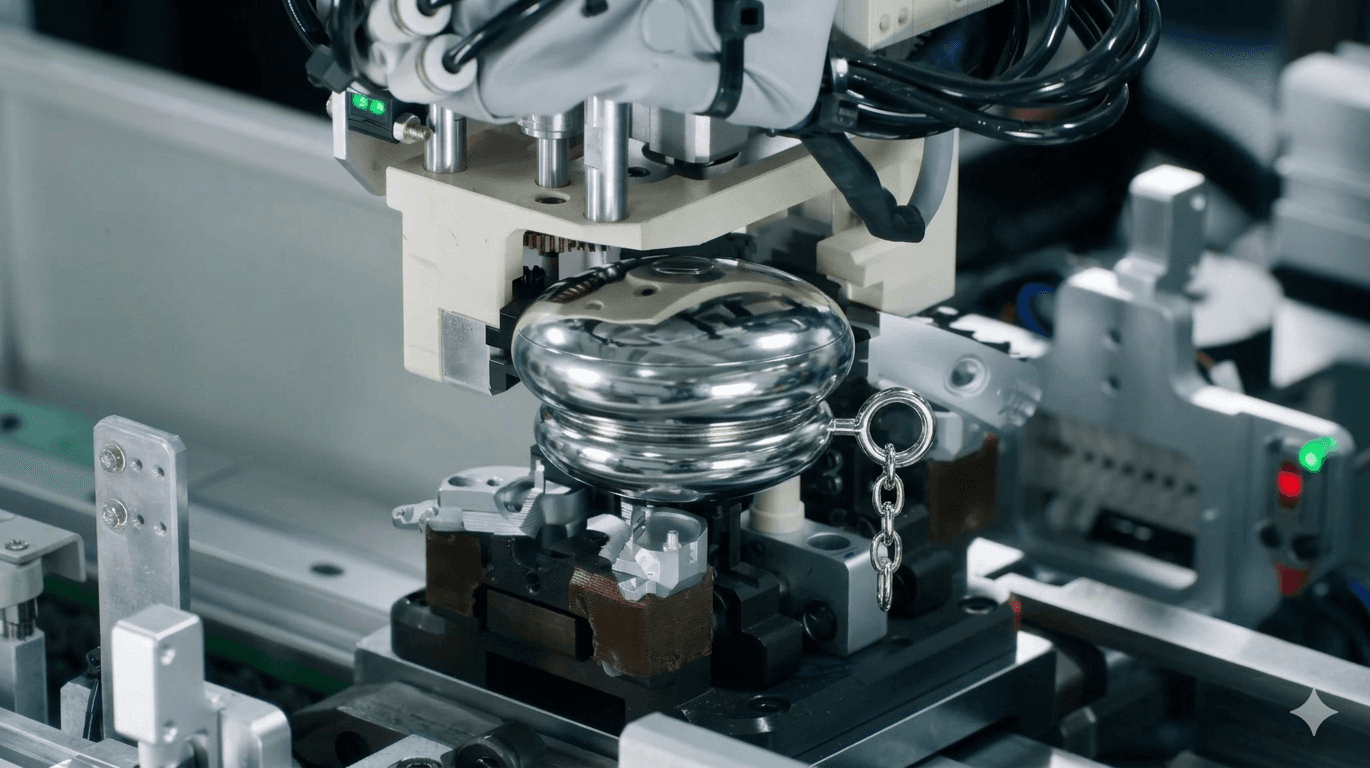

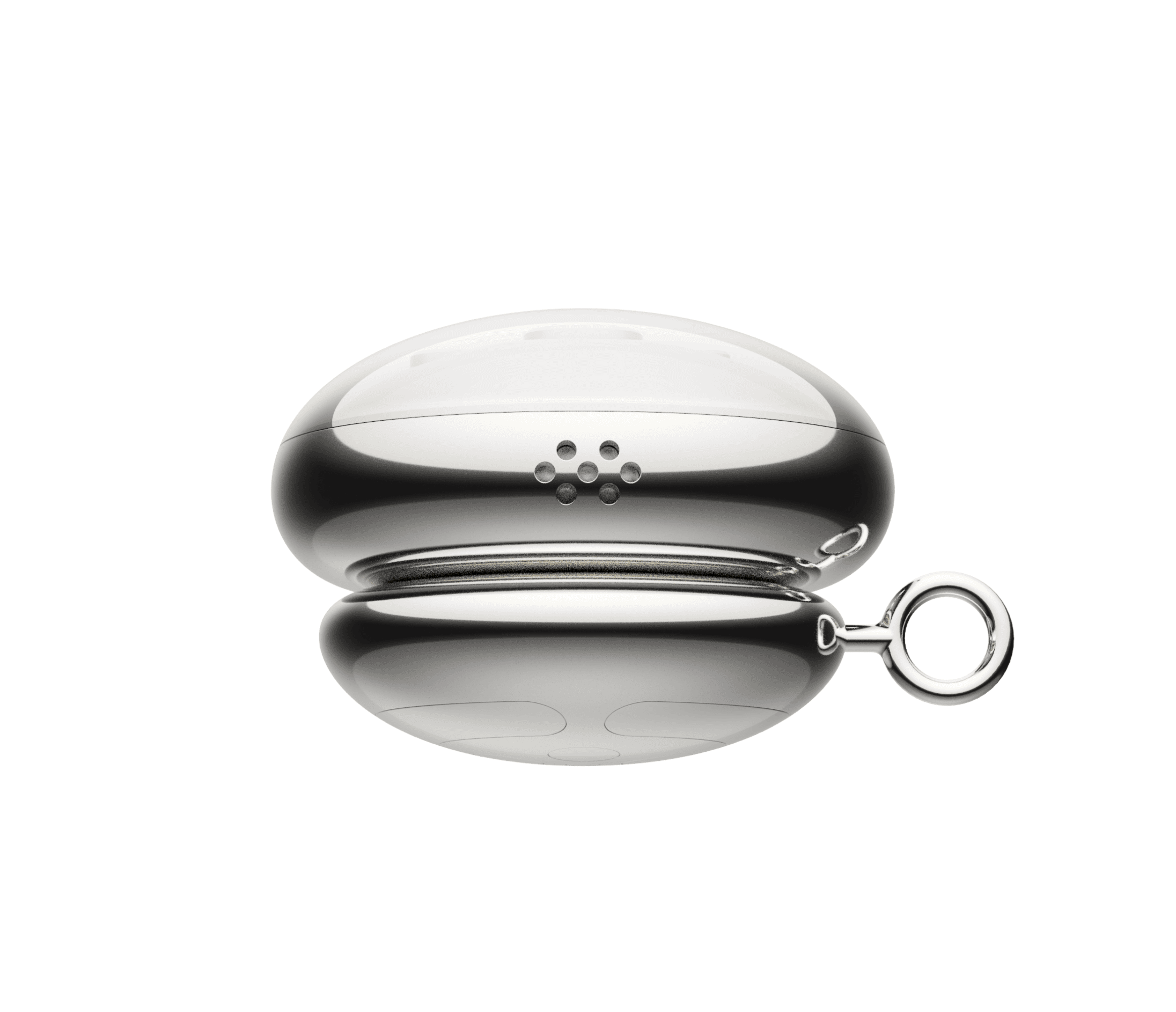

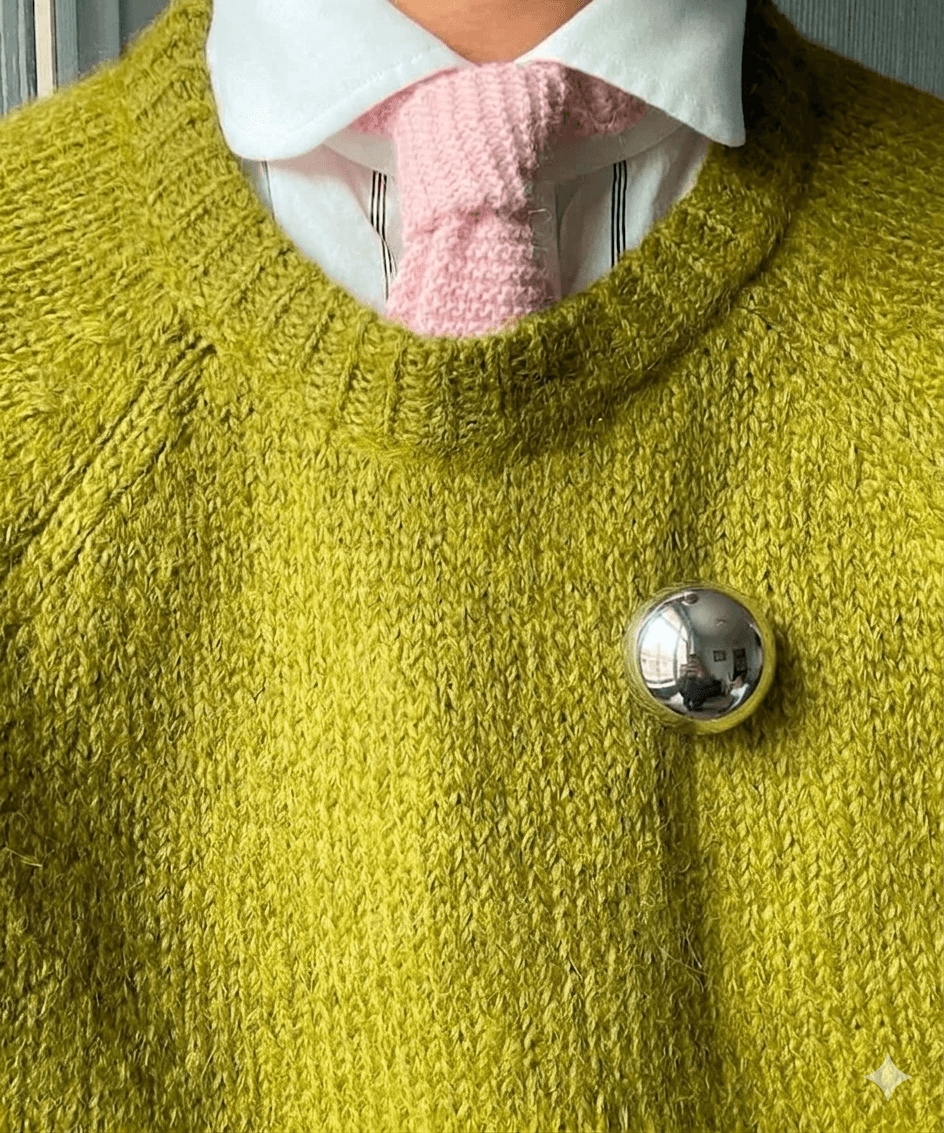

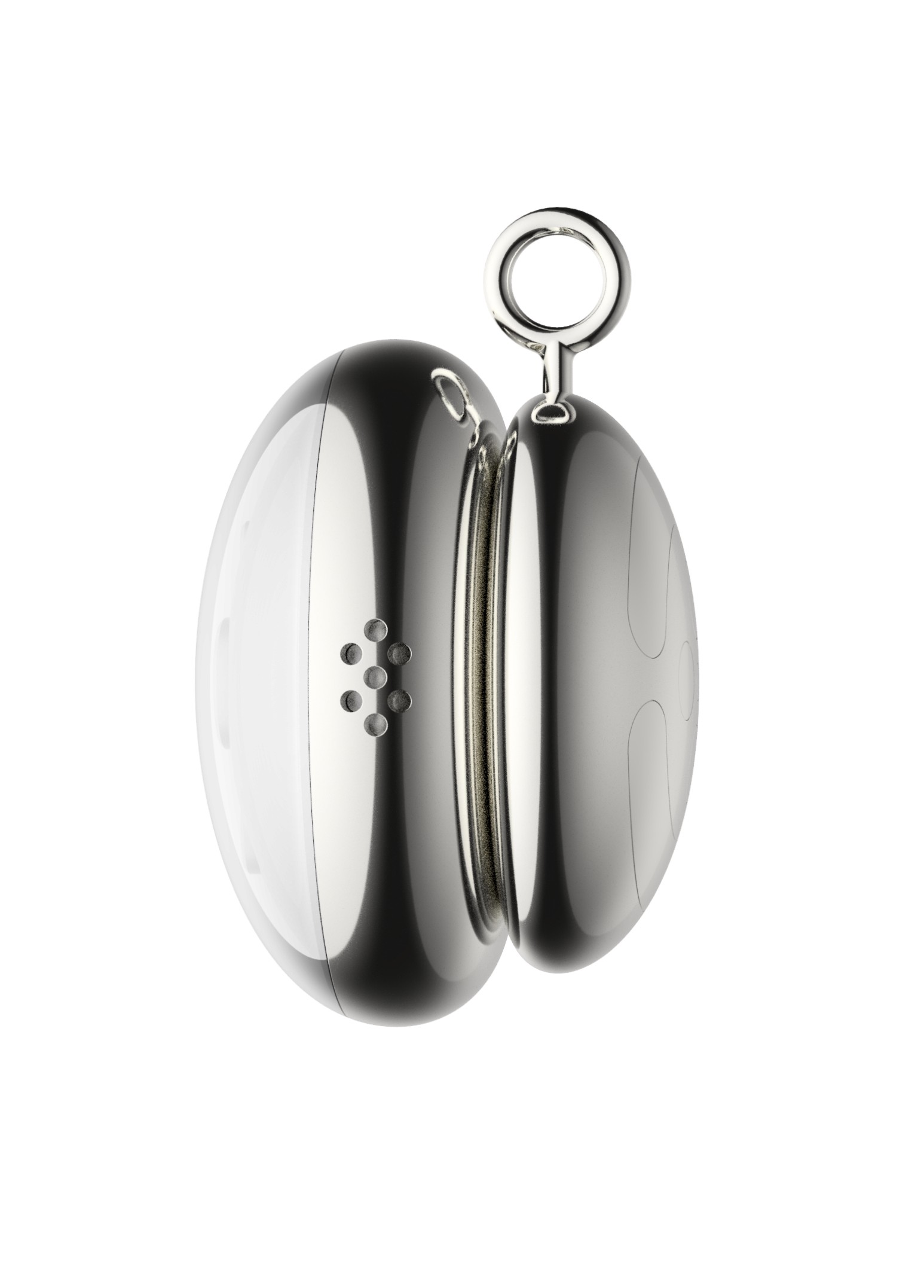

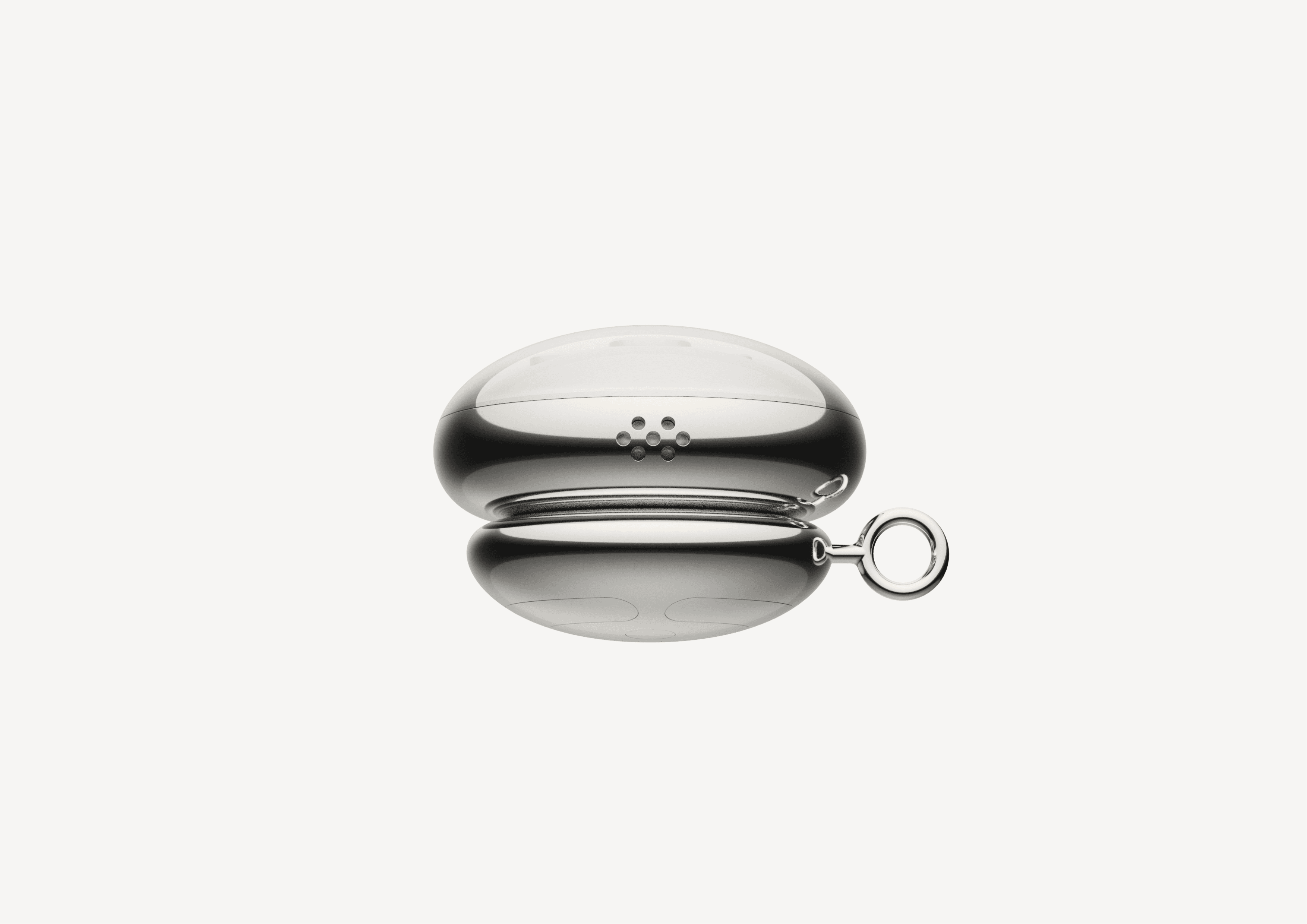

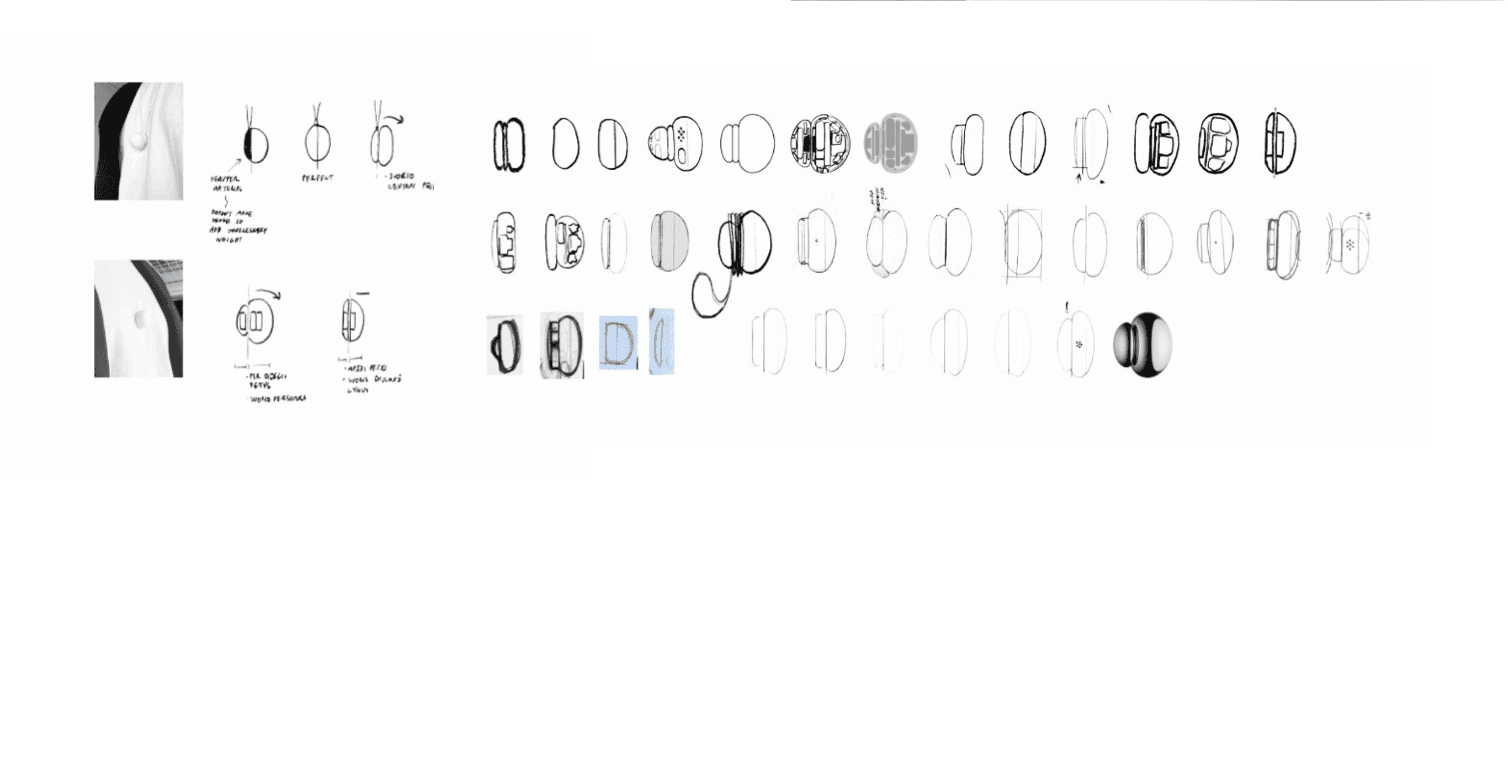

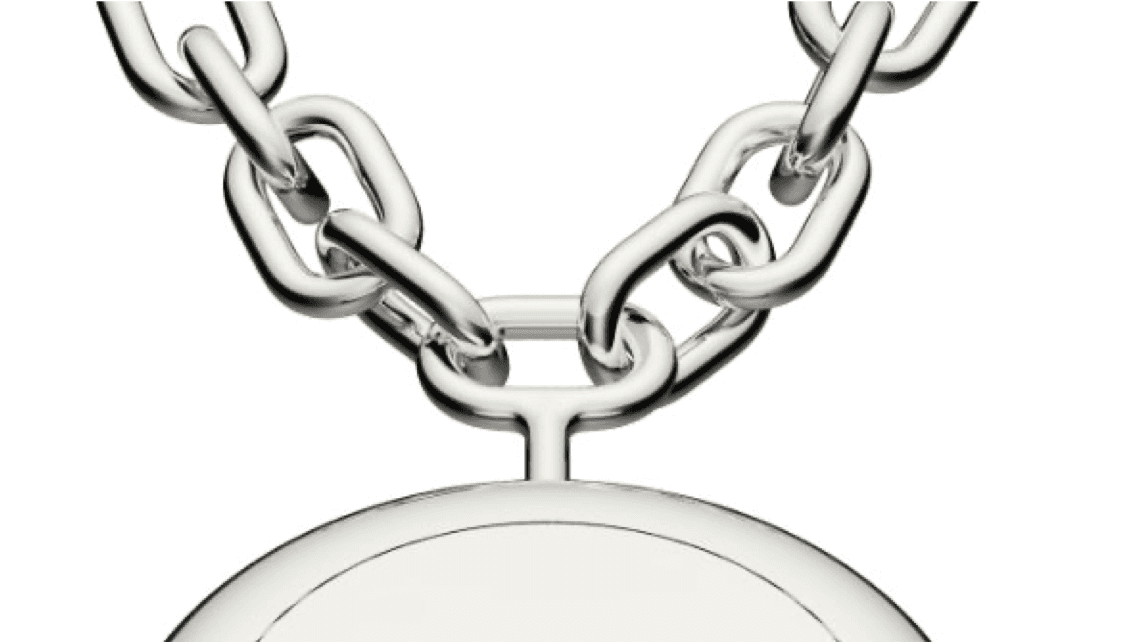

The Amulet is the second stage of immersion — a magnetic brooch and pendant system designed to be worn on clothing and the body.

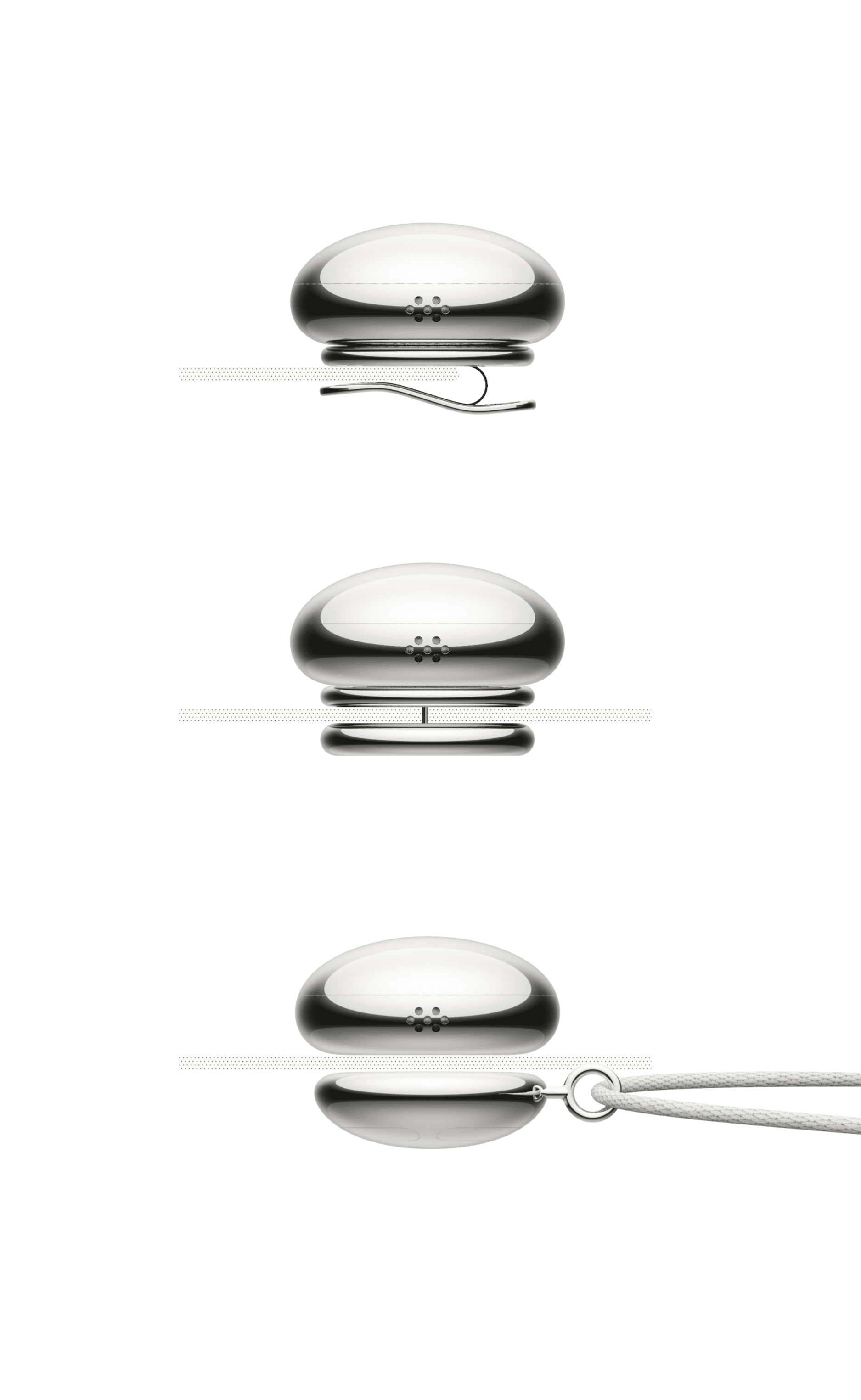

It is a fully functioning computer: camera, spatial microphones, ToF sensor, speaker, and a projector that casts visual information onto the palm. Yet it is deliberately limited, giving the wearer a choice to be less immersed. The pin and clip attachments allow it to be worn on virtually any clothing.

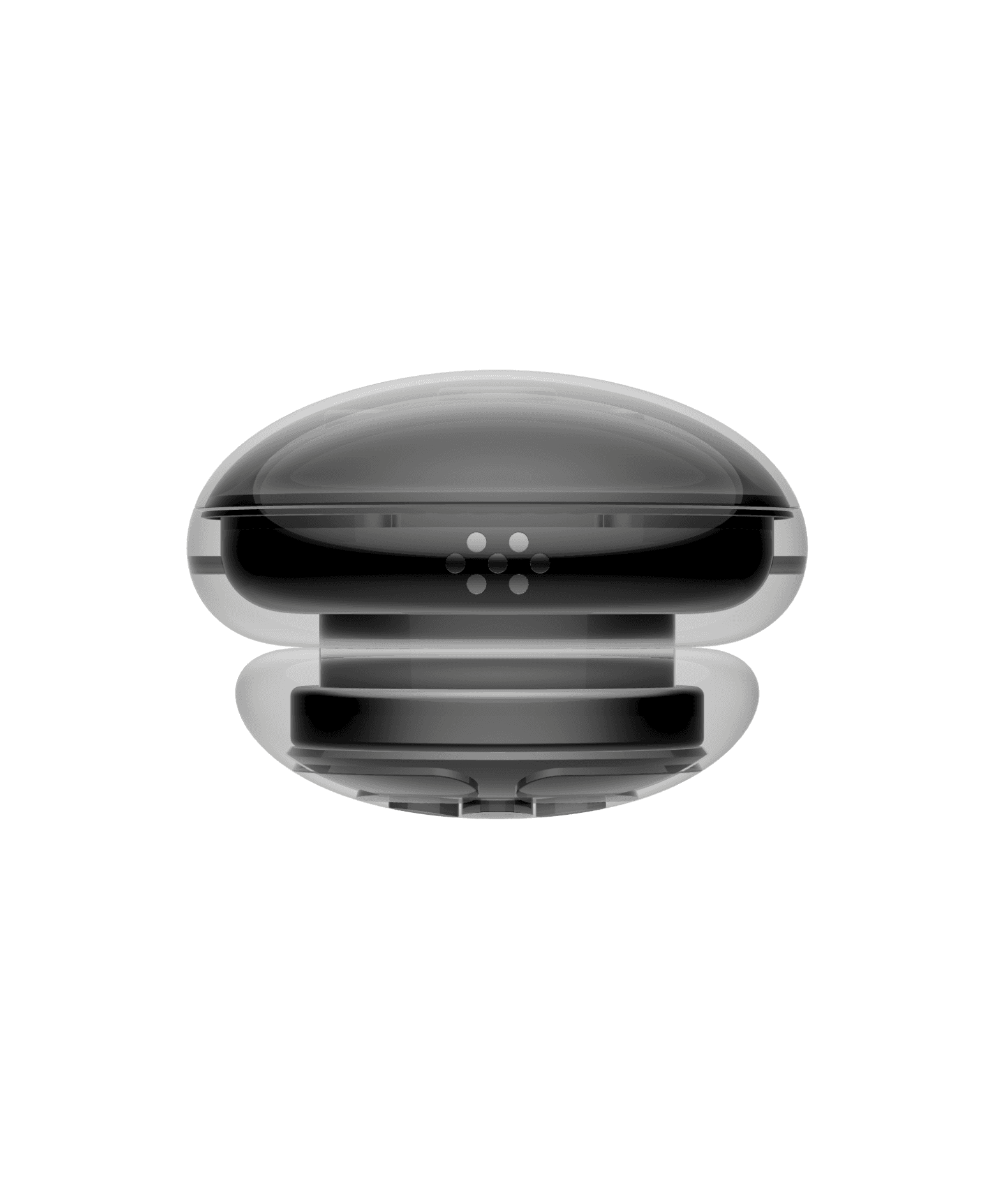

A semi-silvered aluminum oxynitride dome protects and disguises the camera, time-of-flight sensor, and projector system. The camera is hidden because many people feel uncomfortable seeing a worn camera pointed at them.
An amulet has since ancient times meant safety — an object that protects from evil spirits and radiates divine energy.
"An amulet has since ancient times meant safety — an object that protects from evil spirits and radiates divine energy."
The Amulet is the only computer in the system whose outputs — projected visuals and sound — can be shared with more than one person.
Components:
Flat-angle camera, ToF (Time-of-Flight) sensor, MicroLED projector, System-on-Chip (SoC), microphones, speaker, solid-state battery, electromagnetic coils, haptic motor, accelerometer, gyroscope, heart rate sensor, barometer, pressure sensor, always-on altimeter, compass, SpO2, temperature, sweat & odor sensors.
N°3

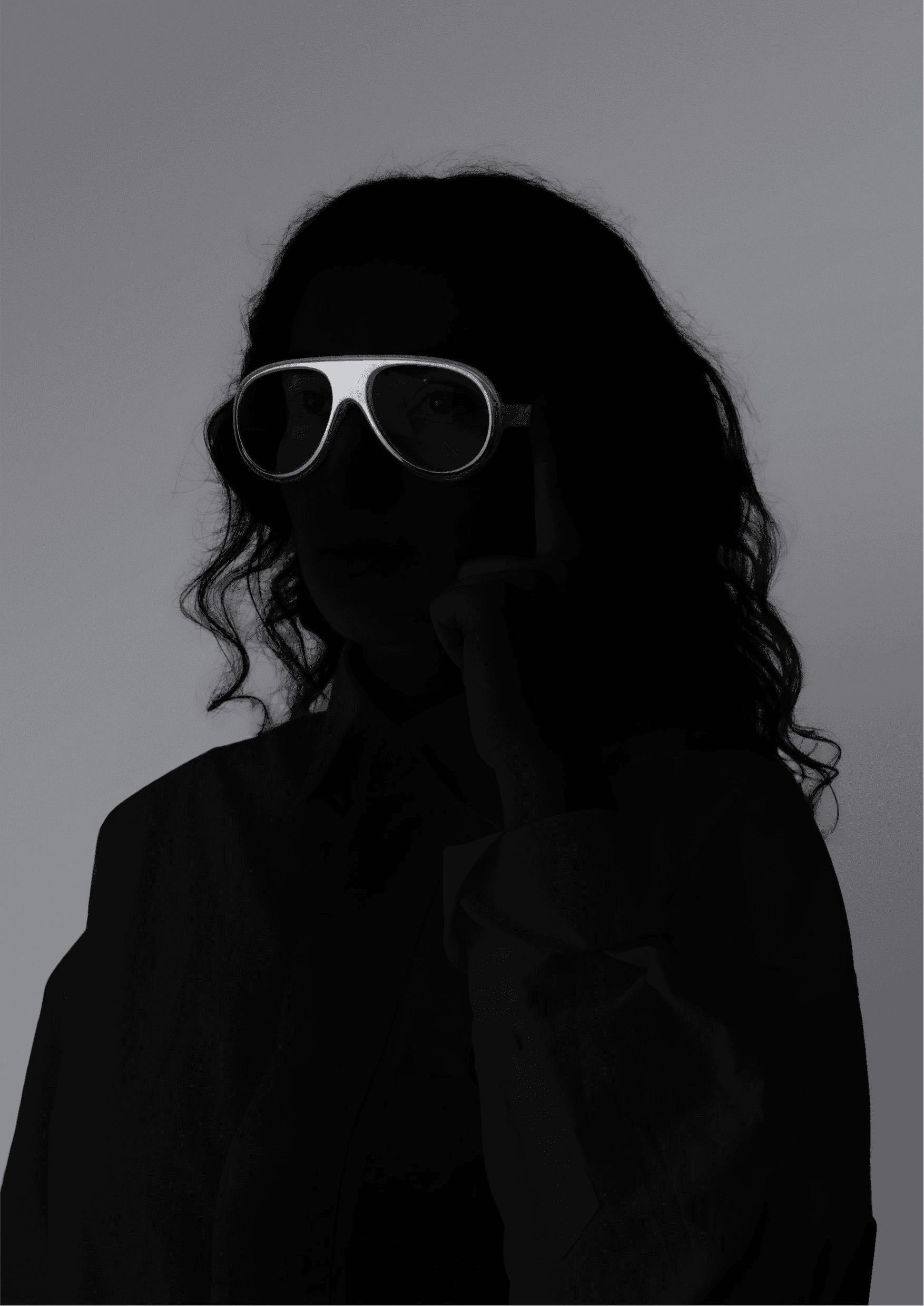

Glasses
The Glasses are the third and deepest stage of immersion.
I resisted Glasses for months. Of the three devices, they pull the wearer deepest into the digital — the very thing this project argues against. But after extensive conversations with designers and potential users, one thing became clear: they were inevitable. If the system is to fully replace a desktop computer, it needs a device that covers the full field of view.
Smart glasses cannot be made like traditional glasses. Internal components demand a larger physical volume, which means not every lens shape can become smart. Rather than imitating existing frames, these Glasses define an archetype — a new typology, deliberately distinct from traditional eyewear.

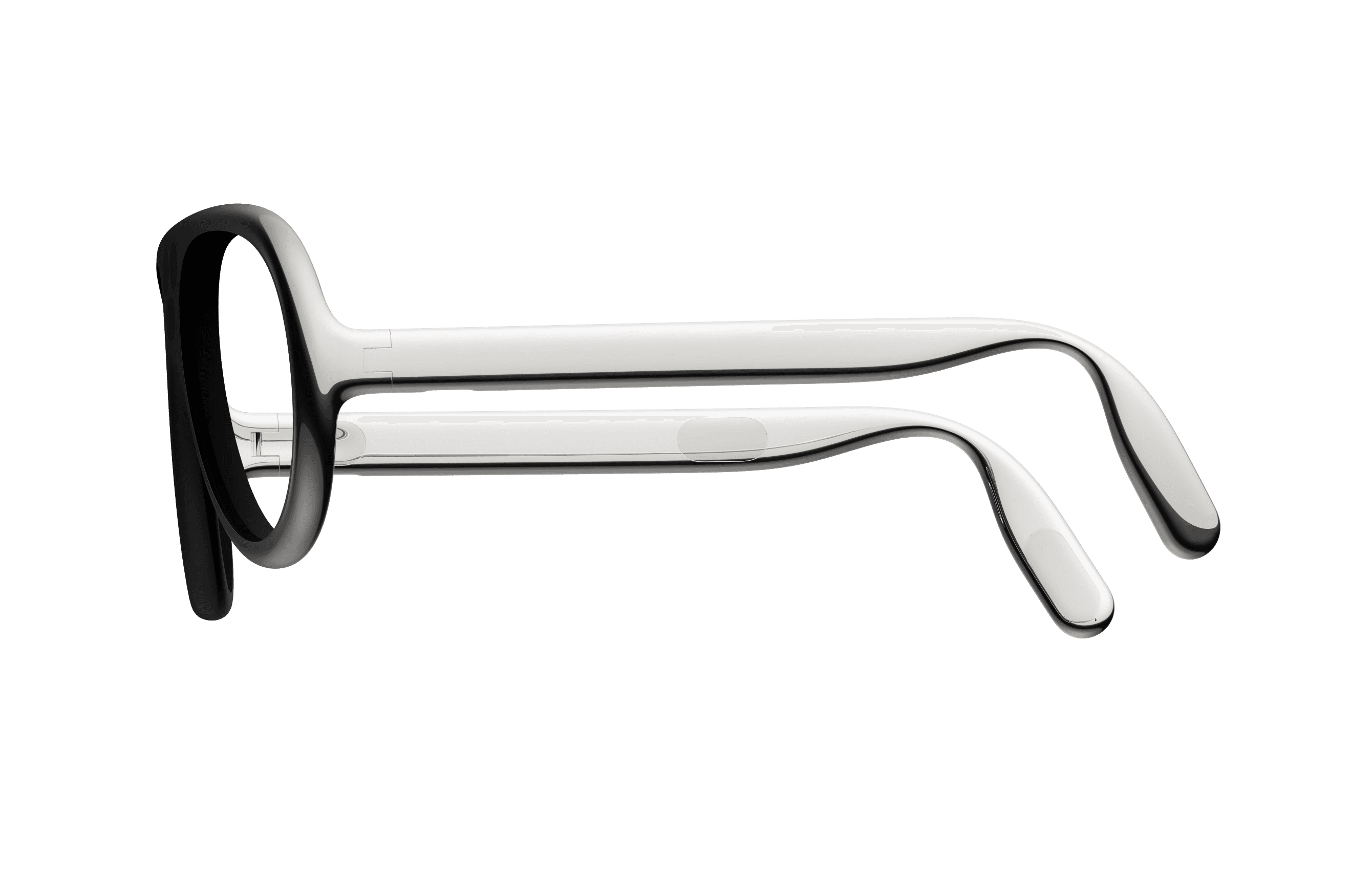

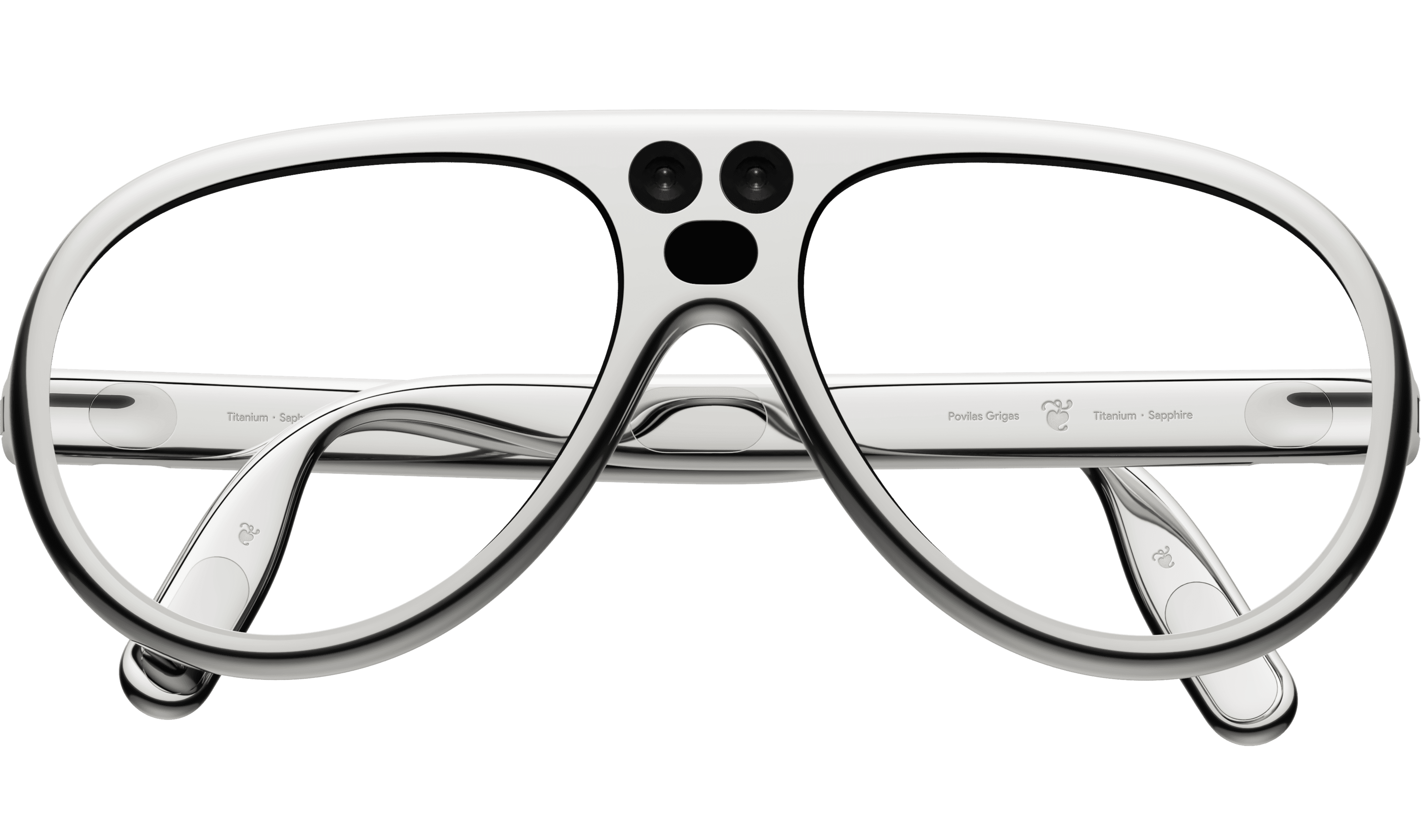

The Glasses' silhouette closely follows the shape of the orbital face bones and therefore covers 90% of the entire field of view of the human eye. Vision sensors are housed in the bridge of the frames to offer a centered POV.

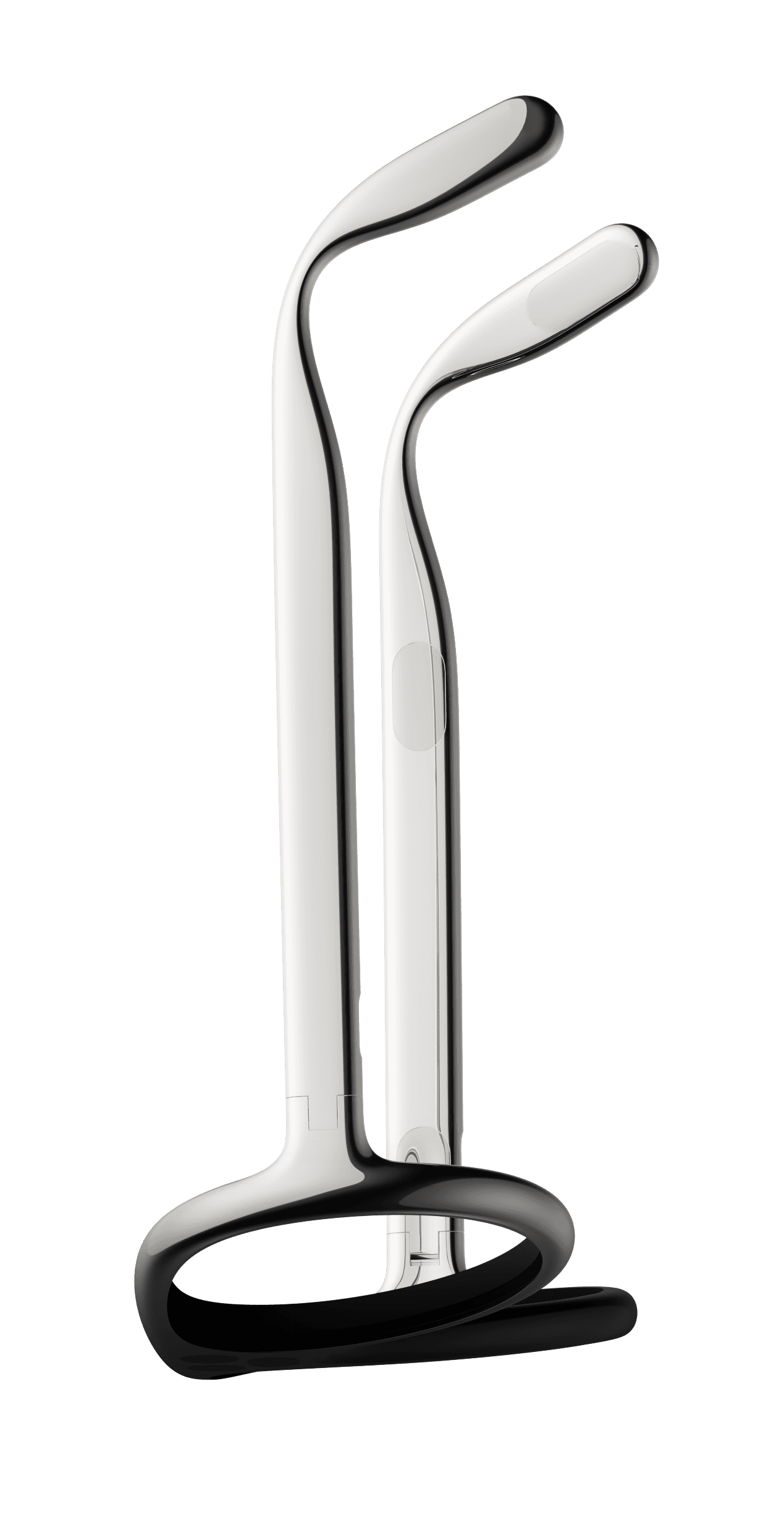

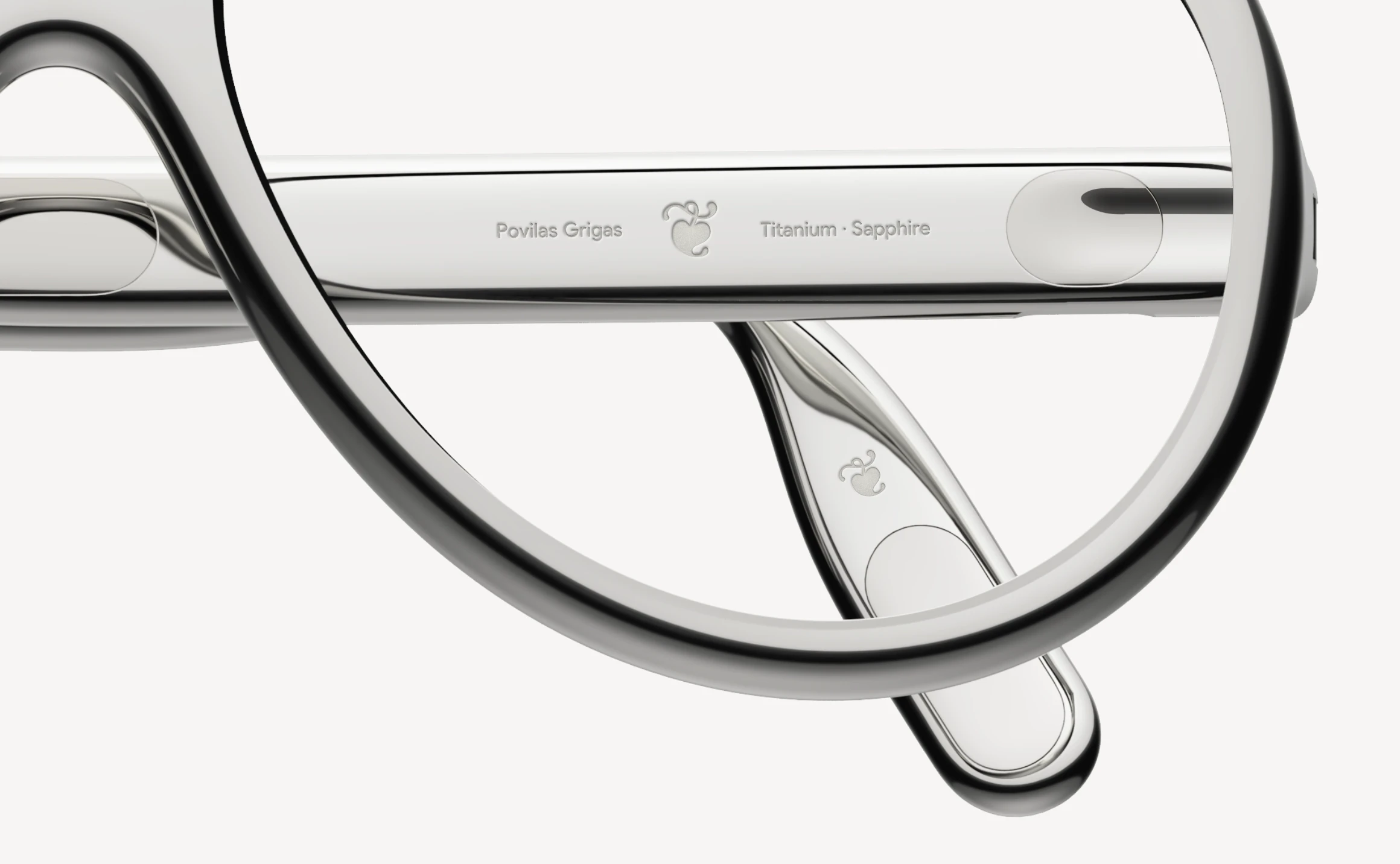

The CNC-milled and polished grade 5 titanium creates an exceptionally strong and light frame. The lenses are precision cut and optically polished sapphire crystals for incredible scratch resistance.

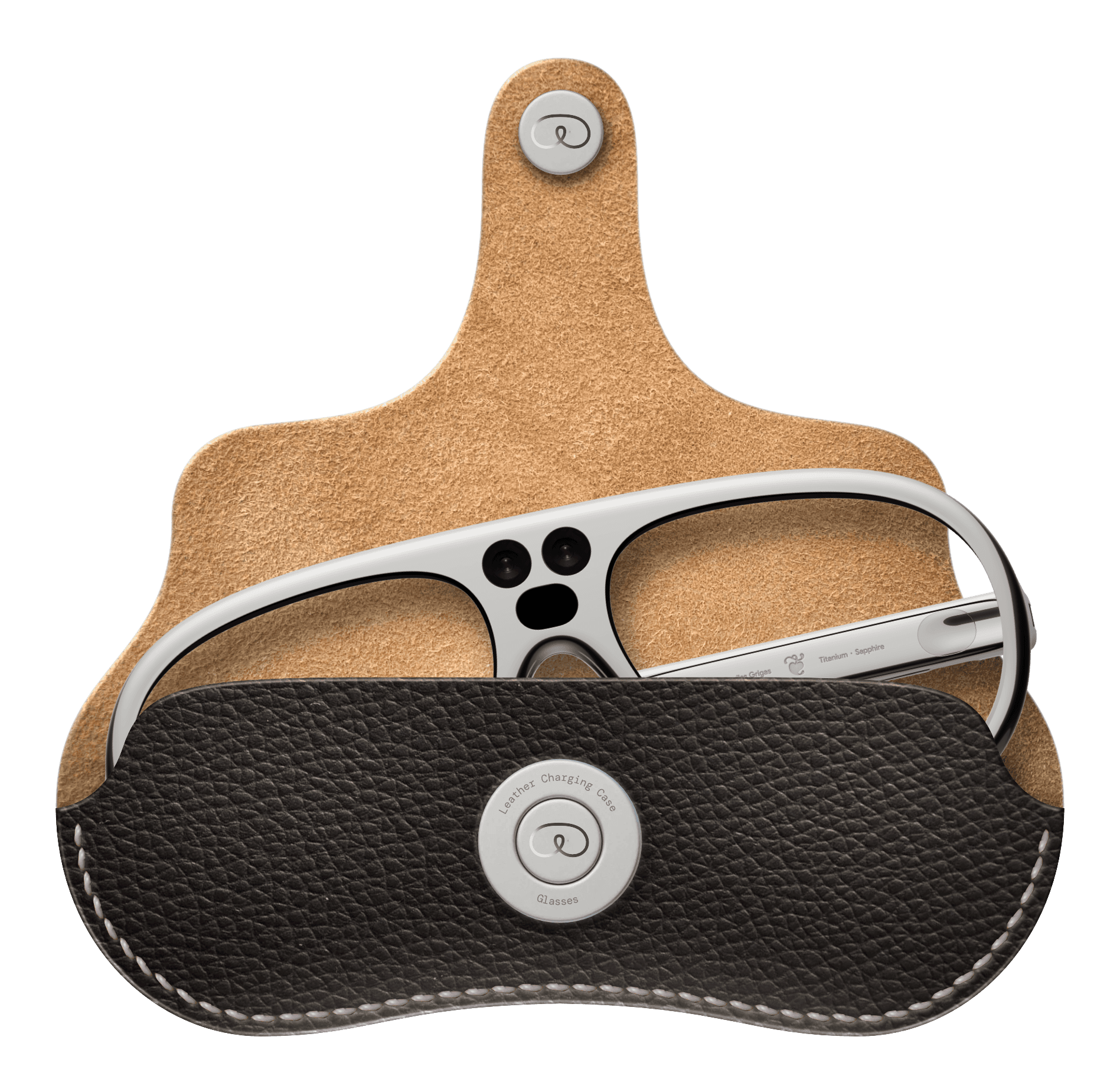

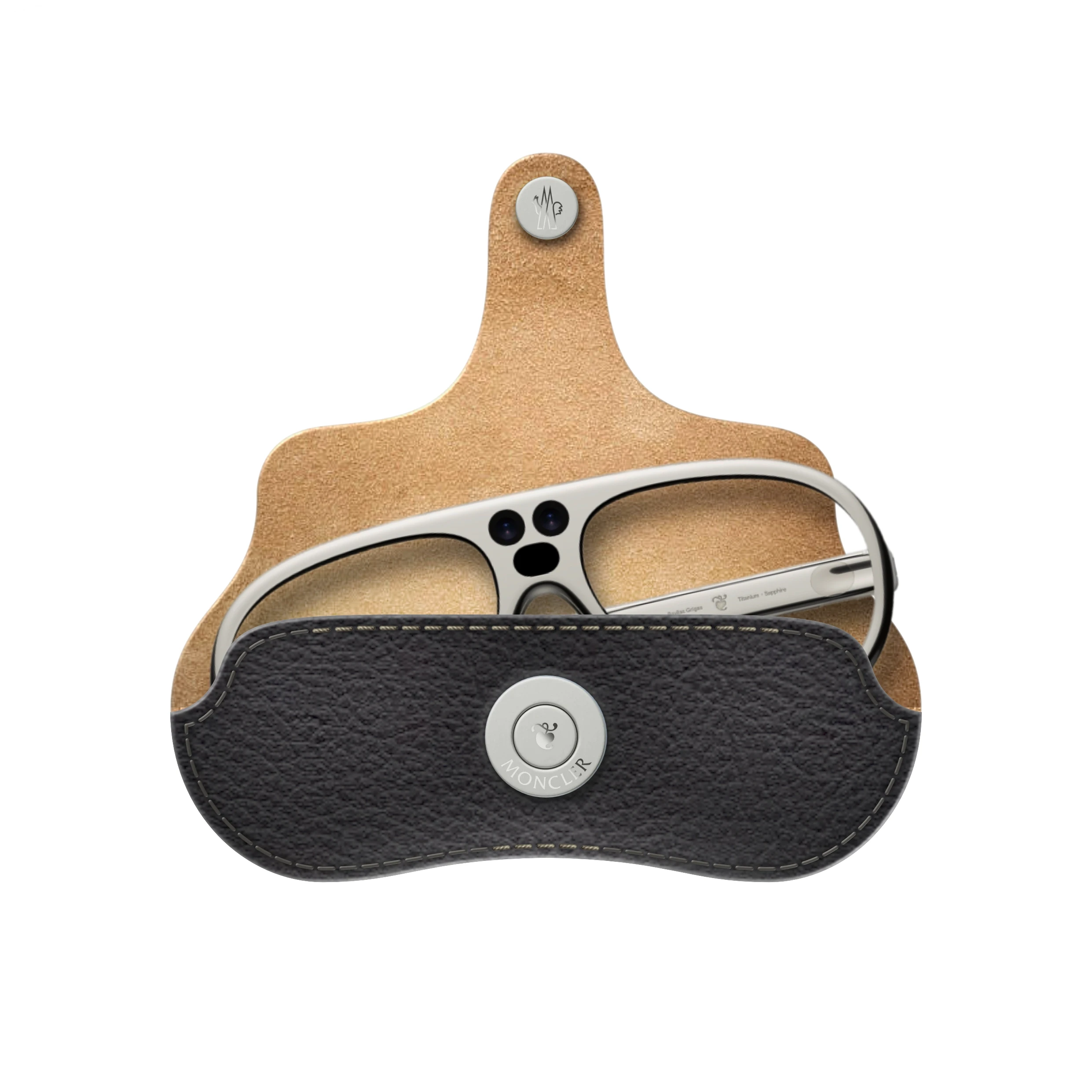

When not in use, Glasses fold flat into the handcrafted leather charging case designed to easily slip inside a pocket.

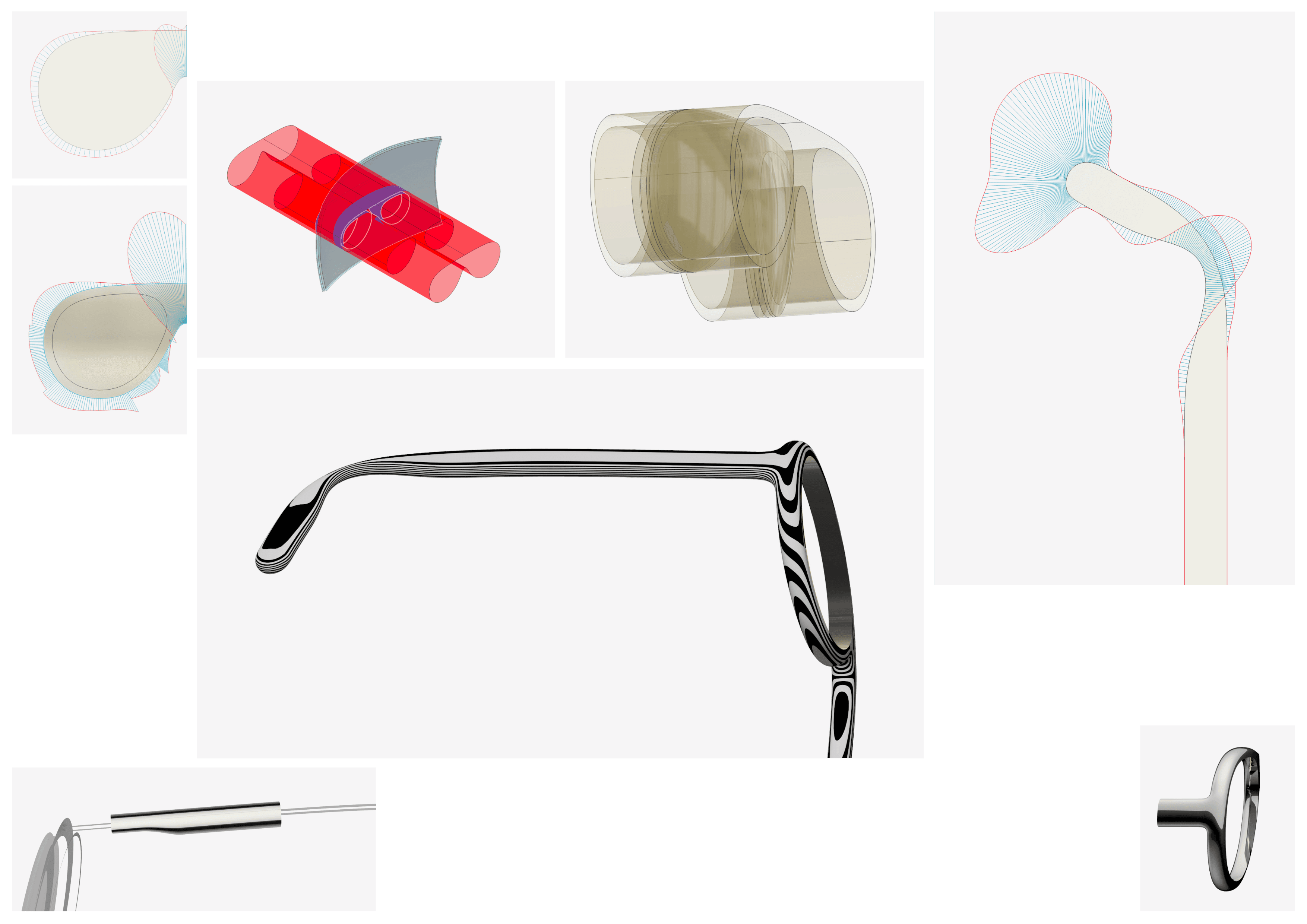

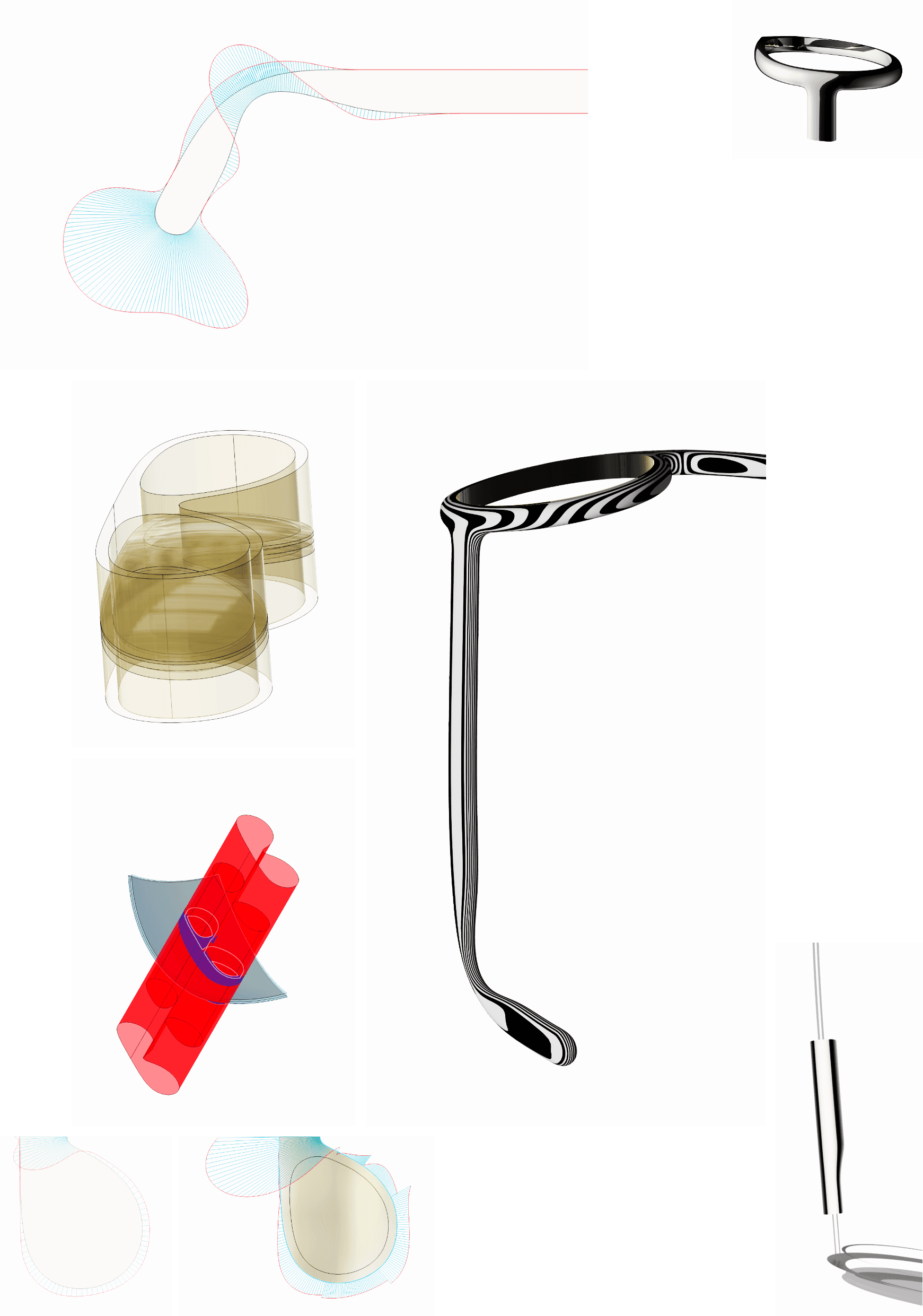

The mirror finish, as with every object in this system, is complemented by the elegantly crafted G3 surfaces, communicating form through reflection.
Home

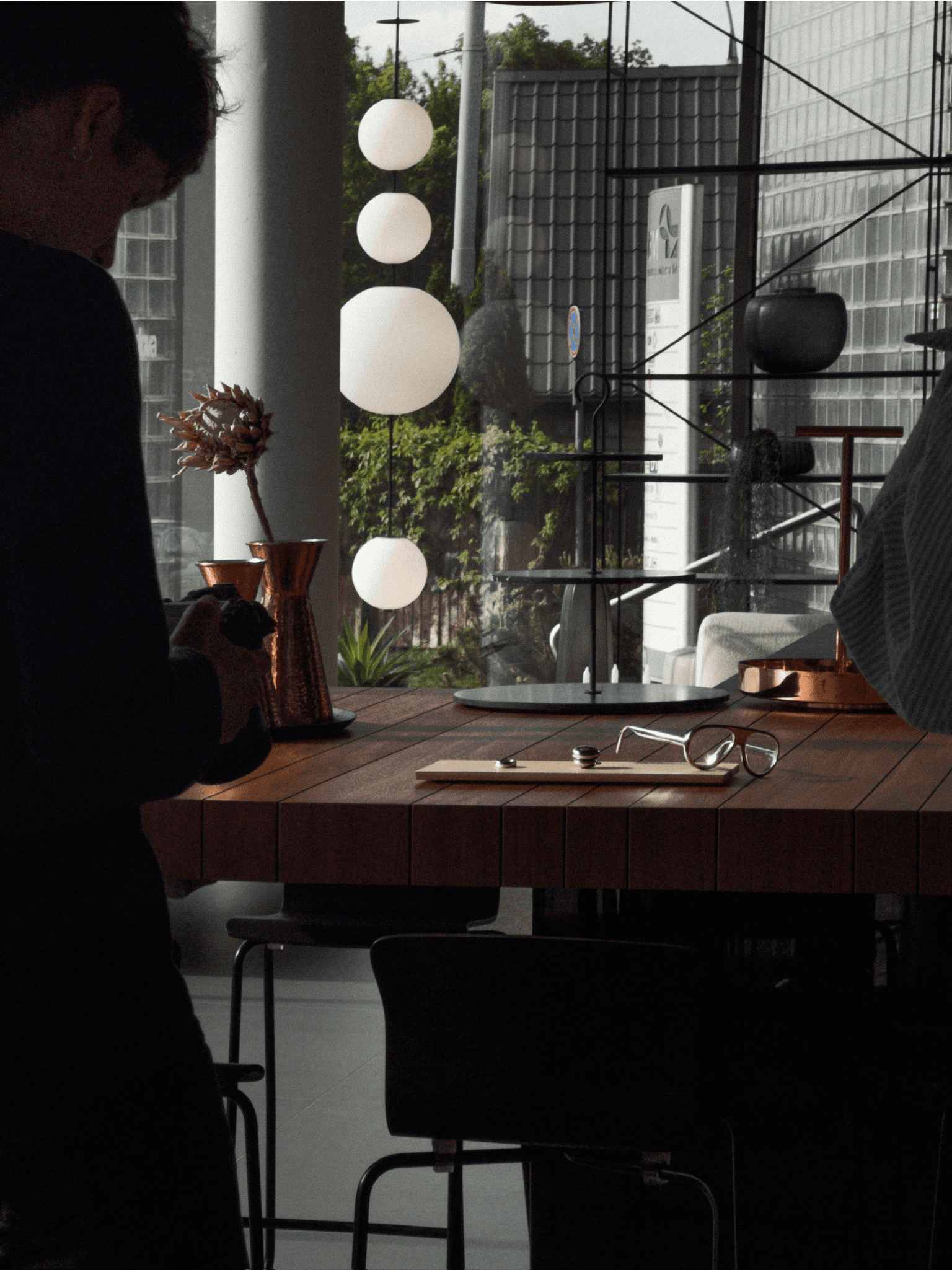

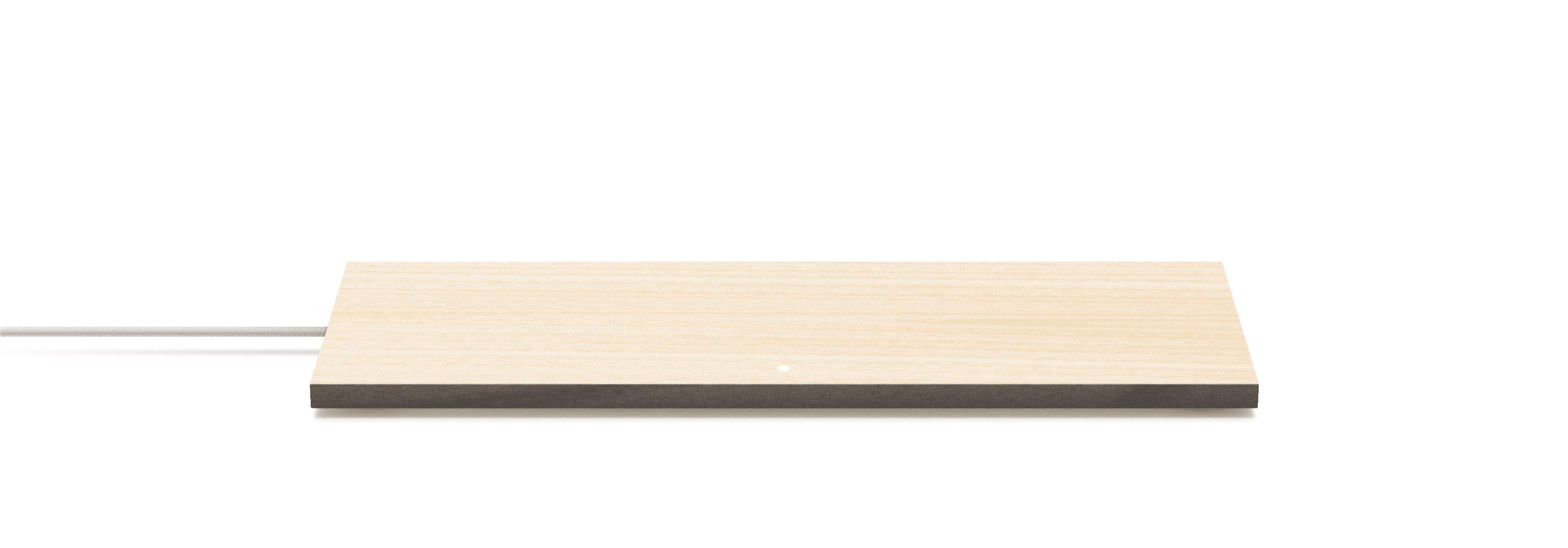

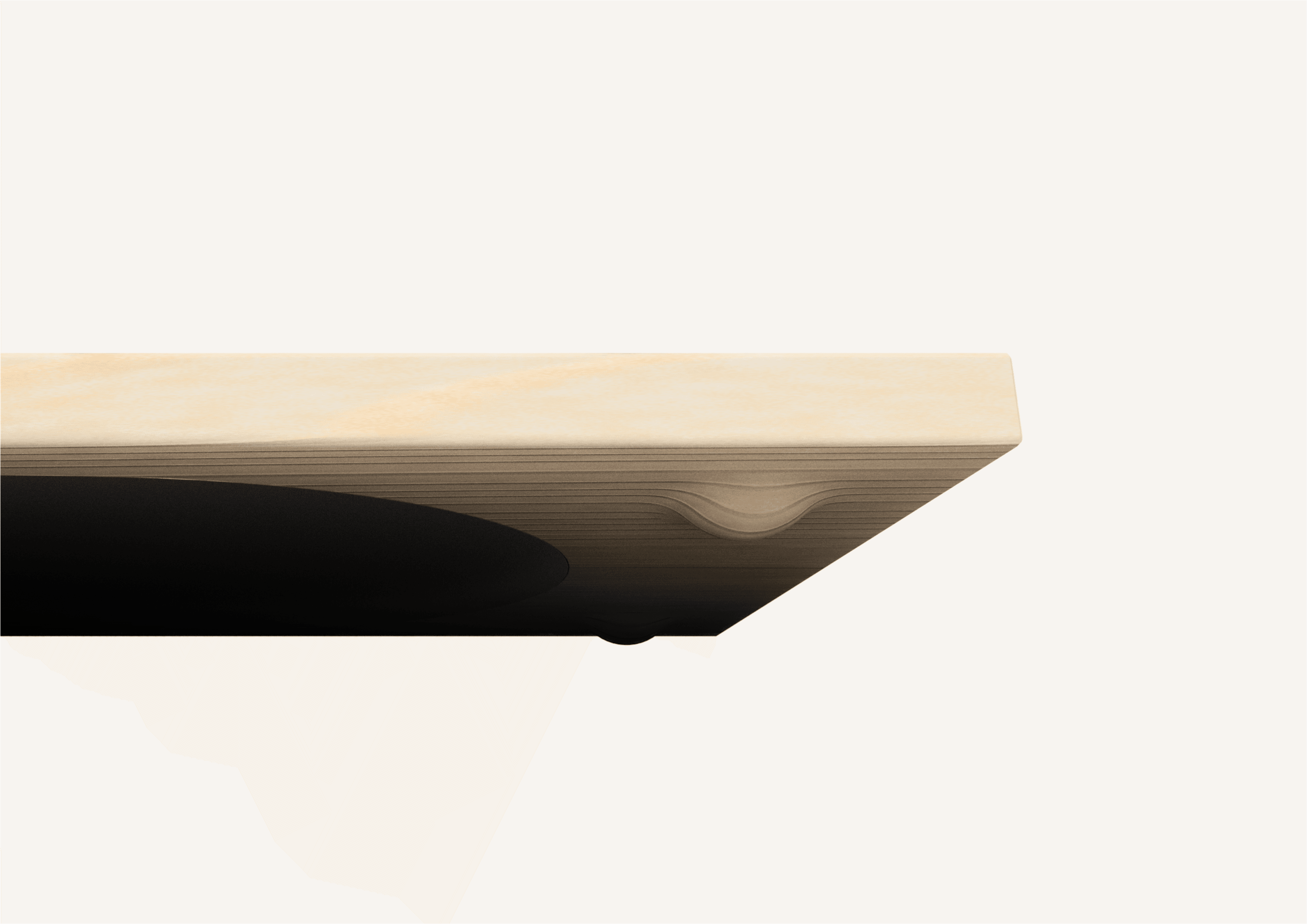

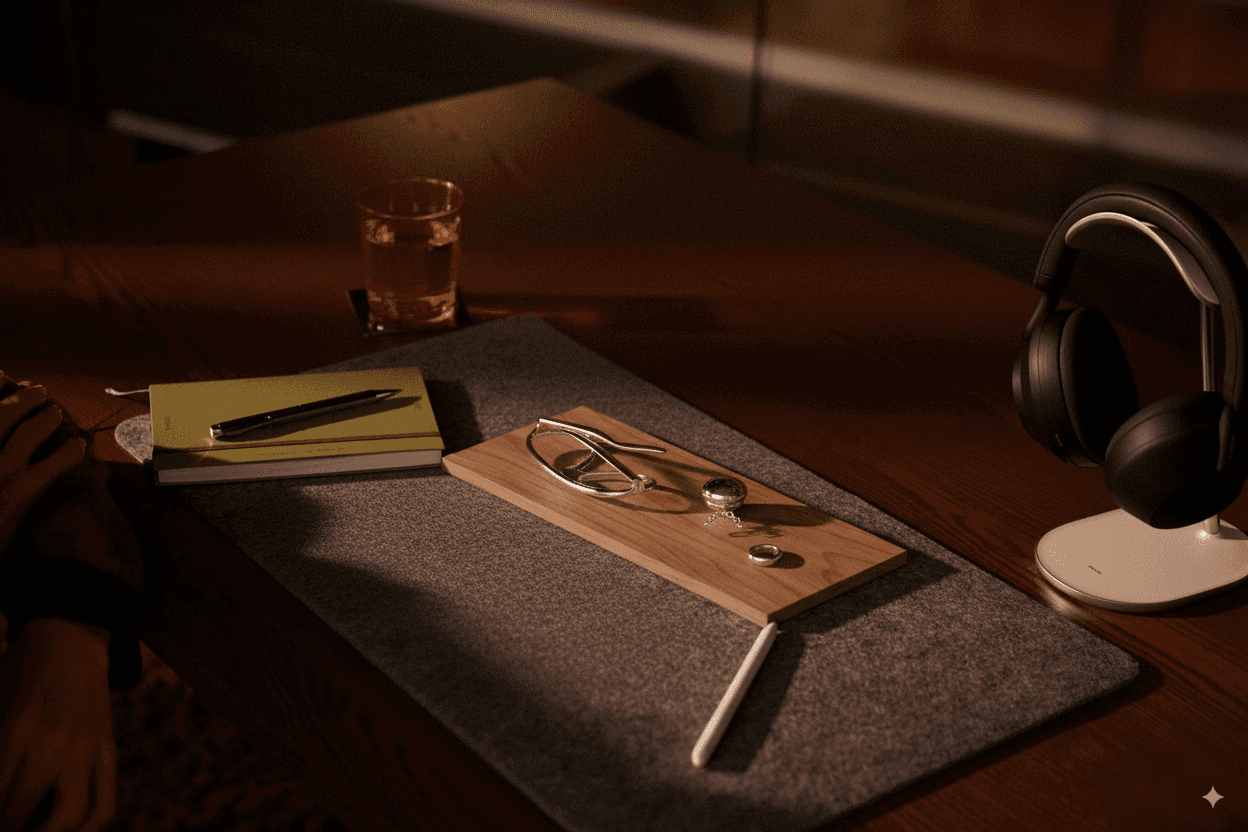

Charging Plank
The Charging Plank is a deliberately stationary object that encourages people to, upon returning home, set aside their wearables and be present with their loved ones.
a study by Japan's Forestry and Forest Products Research Institute found that touching wood with the palm calms prefrontal cortex activity and stimulates the parasympathetic nervous system — inducing physiological relaxation more than other materials.
The Plank is made of wood because its context is the home. You touch it when you put your devices down. The material itself participates in the act of letting go.

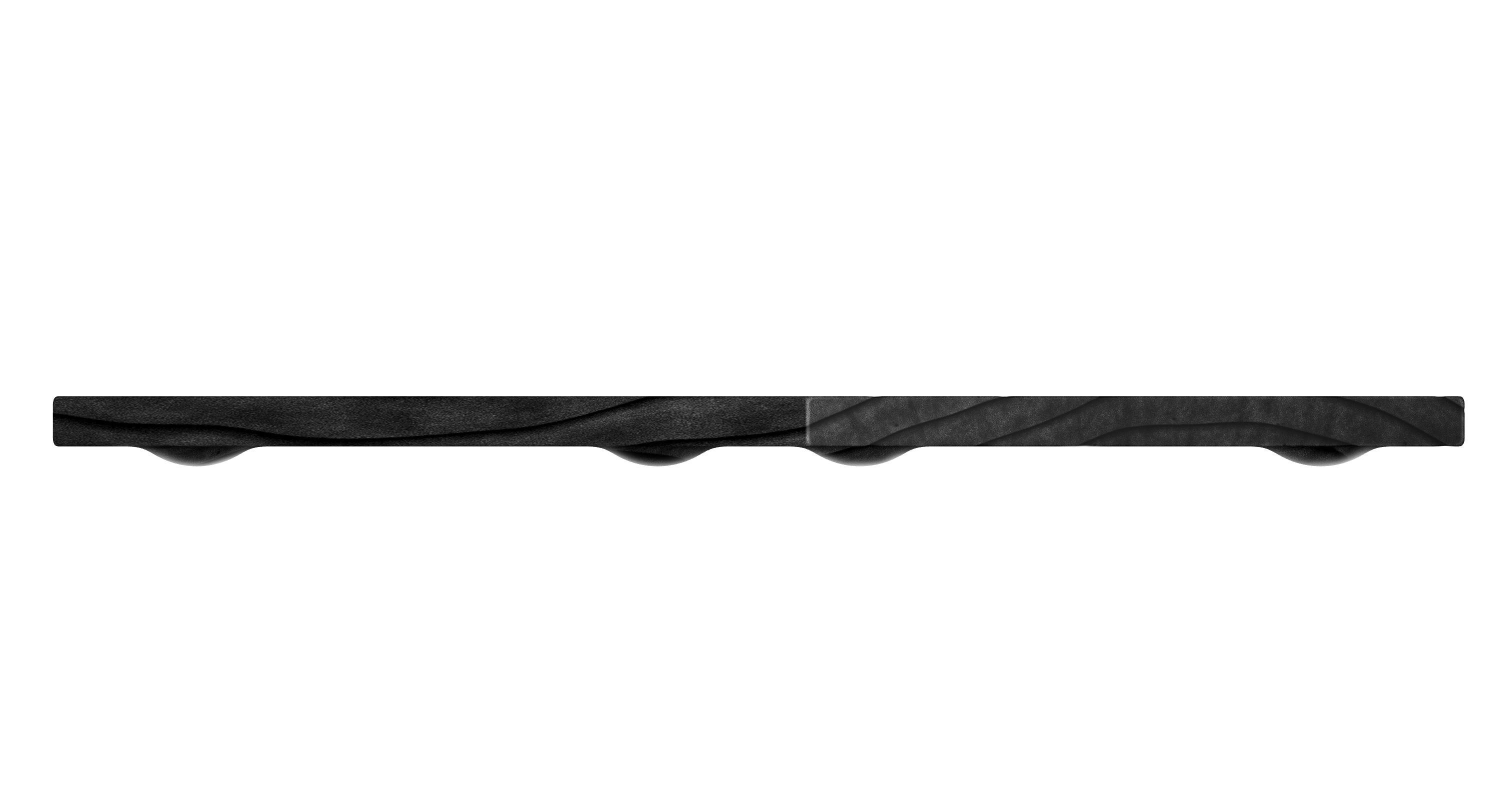

The 4 feet are CNC-milled from a solid piece of hinoki. They creating an air gap at the bottom for convection, while the stainless steel plate at the bottom increases thermal mass and helps dissipate heat from the electromagnetic coils inside the board.
Ciuuy
Interaction

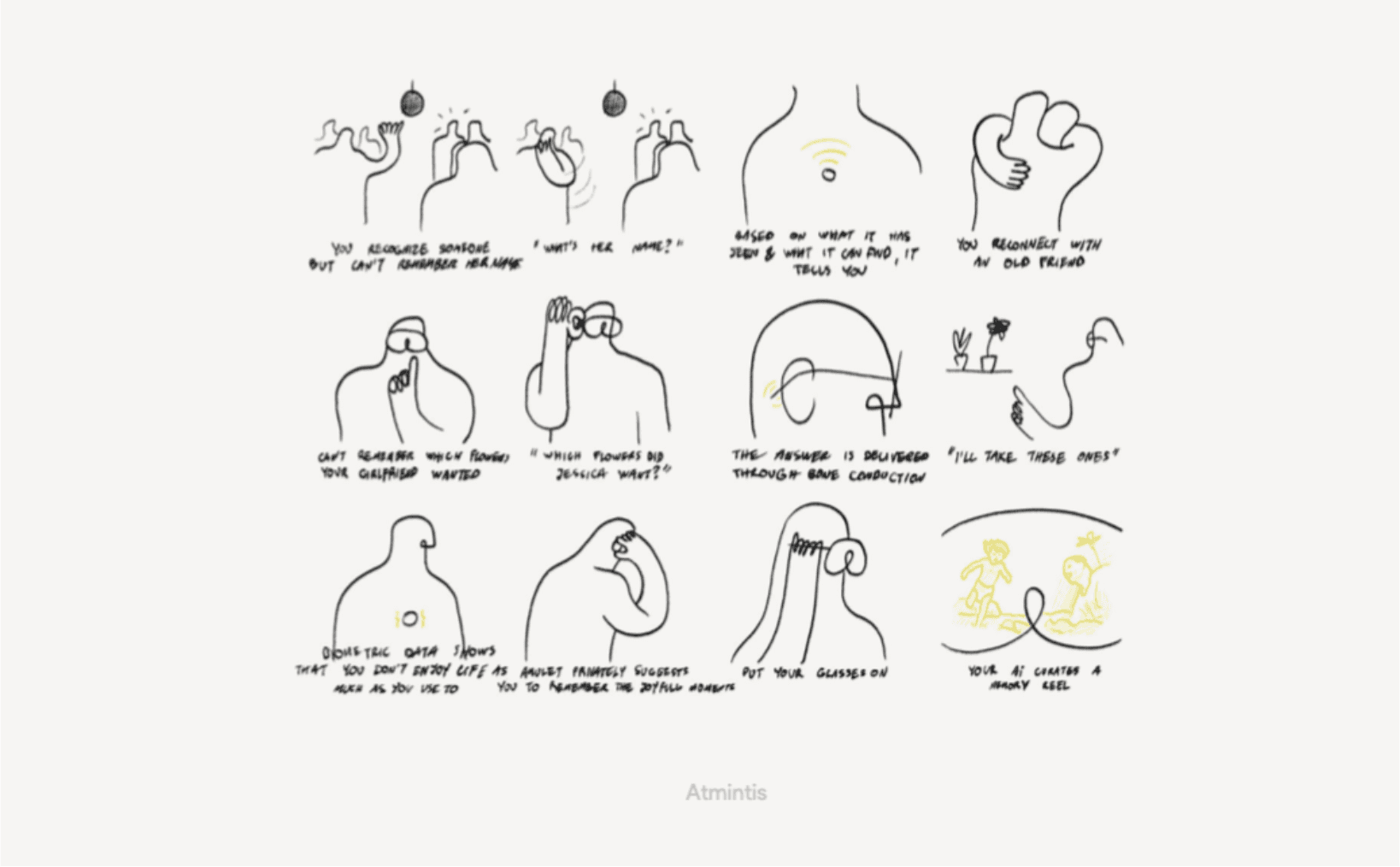

These computers do not have traditional input devices — no screen, no keyboard, no mouse.

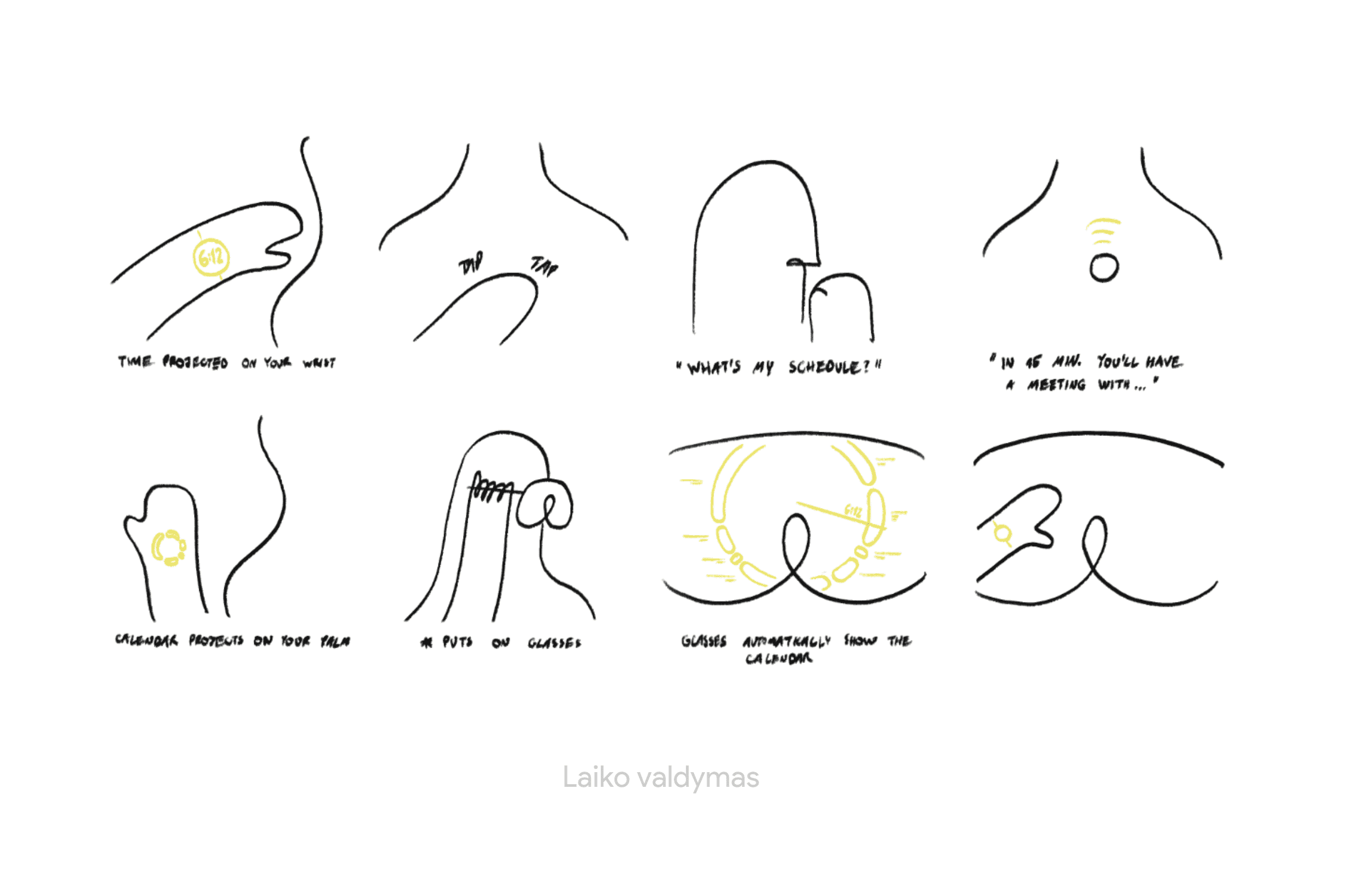

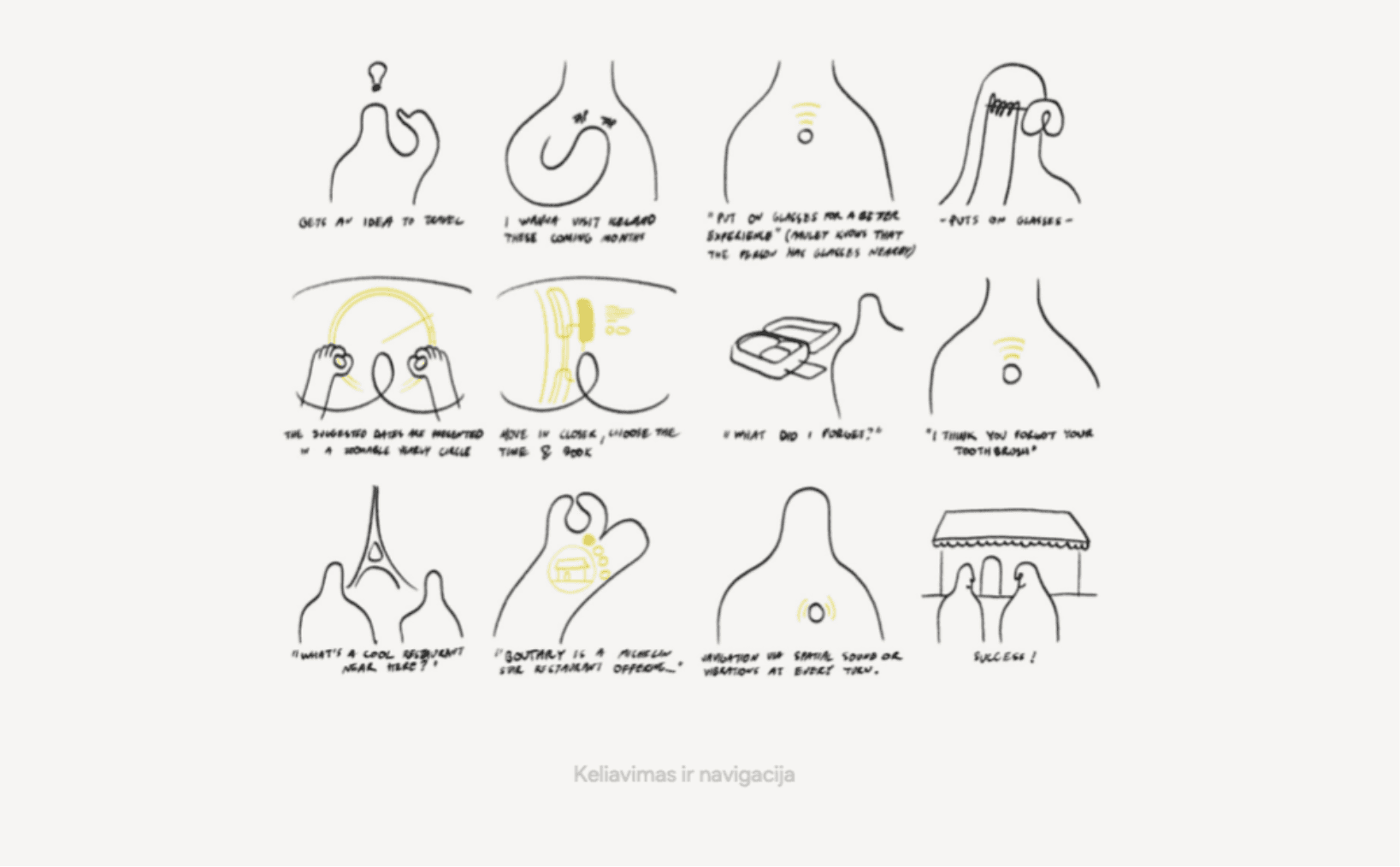

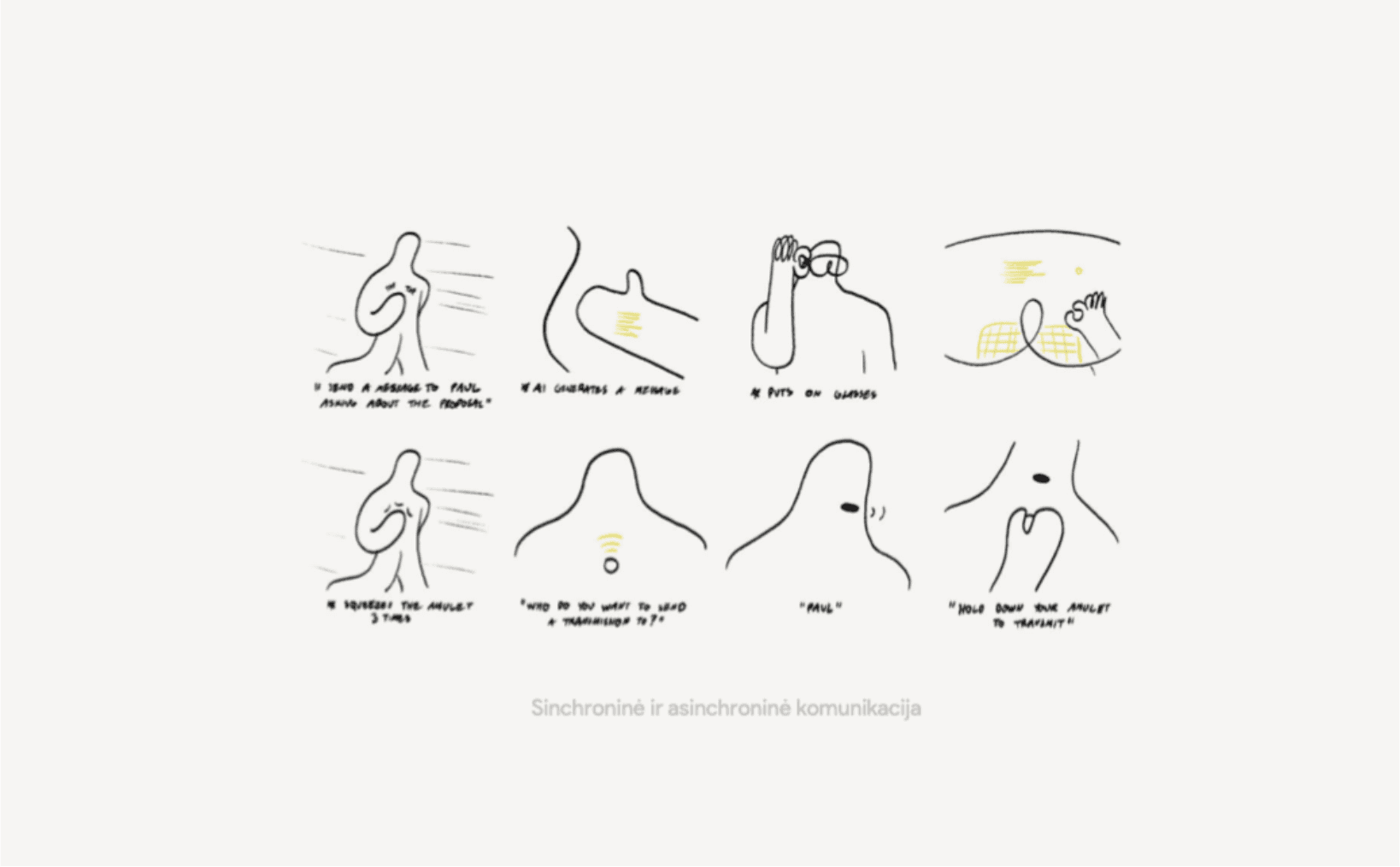

They use the environment and the human body as input, and with the help of AI, are contextually aware. Gestures are a central part of the interaction.
The human-computer interaction paradigm established more than 60 years ago was defined by the technological limitations of its time. User interfaces today have hardly changed, because computers themselves haven't fundamentally changed. These wearable computers are designed to break that pattern.
As these computers do not have traditional input devices, such as a screen, a keyboard and a mouse, they use the environment and the human body as input and with the help of AI, are able to be contextually aware. Gestures are a big part of the interaction with these computers.
Ciuuy
Research
These computers do not have traditional input devices — no screen, no keyboard, no mouse.
They use the environment and the human body as input, and with the help of AI, are contextually aware. Gestures are a central part of the interaction.
The human-computer interaction paradigm established more than 60 years ago was defined by the technological limitations of its time. User interfaces today have hardly changed, because computers themselves haven't fundamentally changed. These wearable computers are designed to break that pattern.

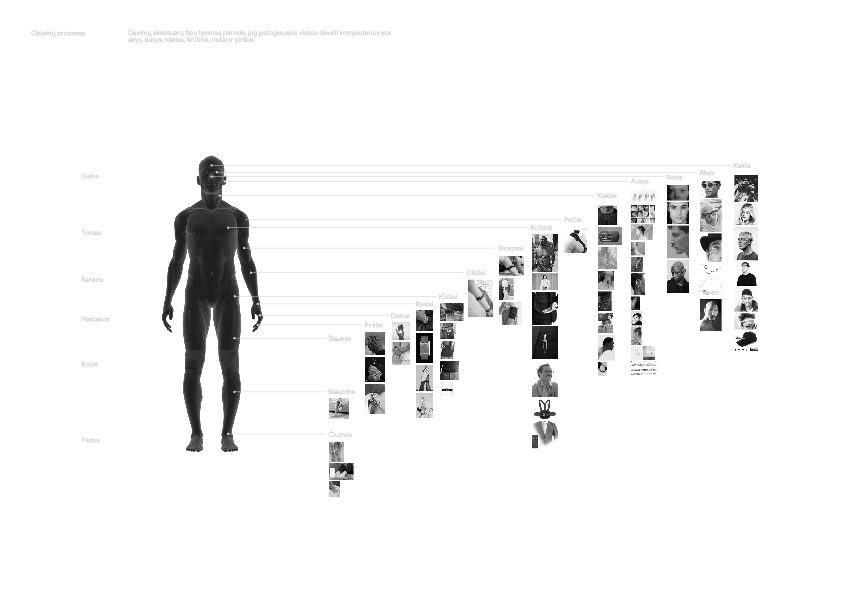

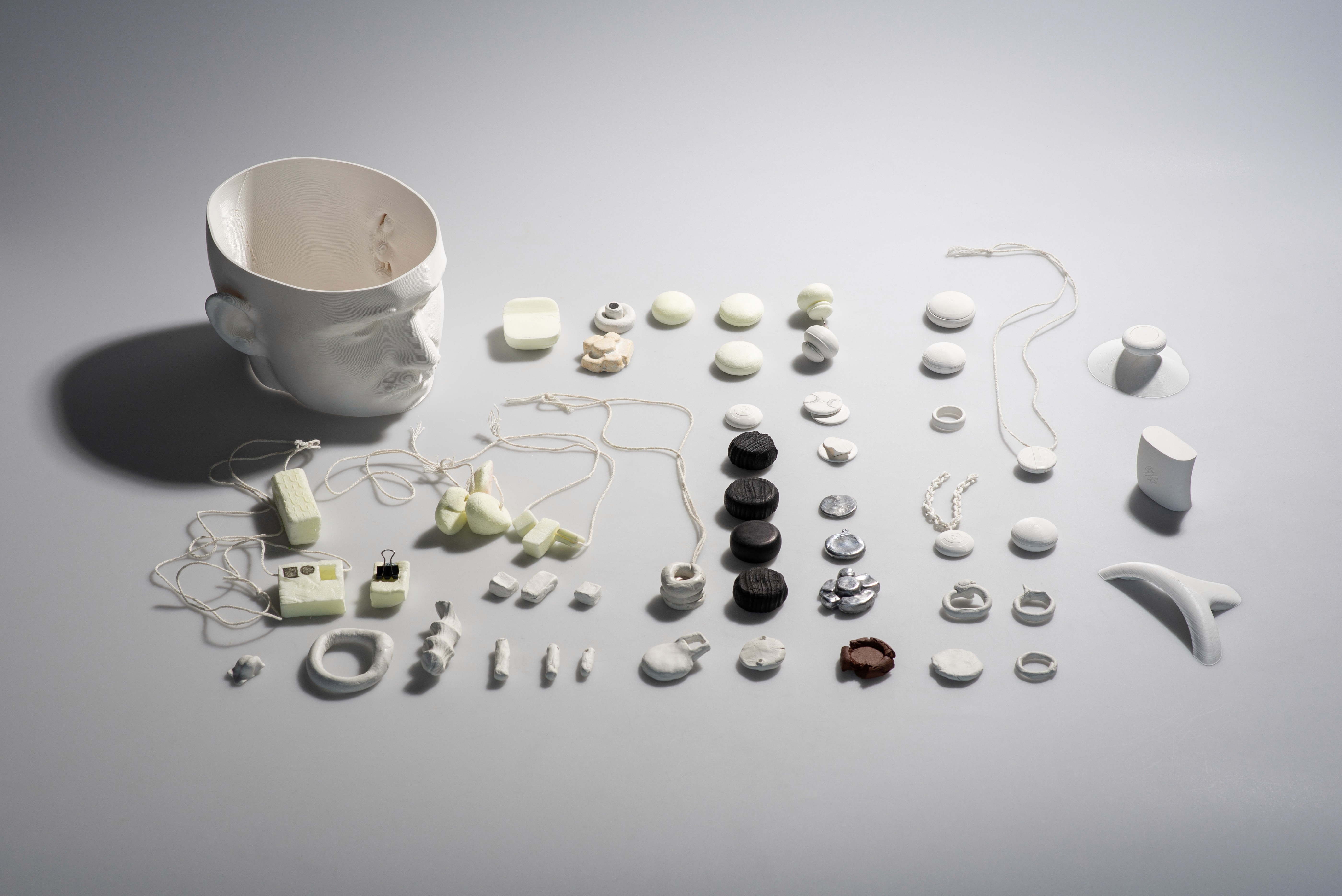

A study on the types of accessories worn showed the most convenient places to wear computers to be eyes, ears, neck, chest, wrists and fingers.

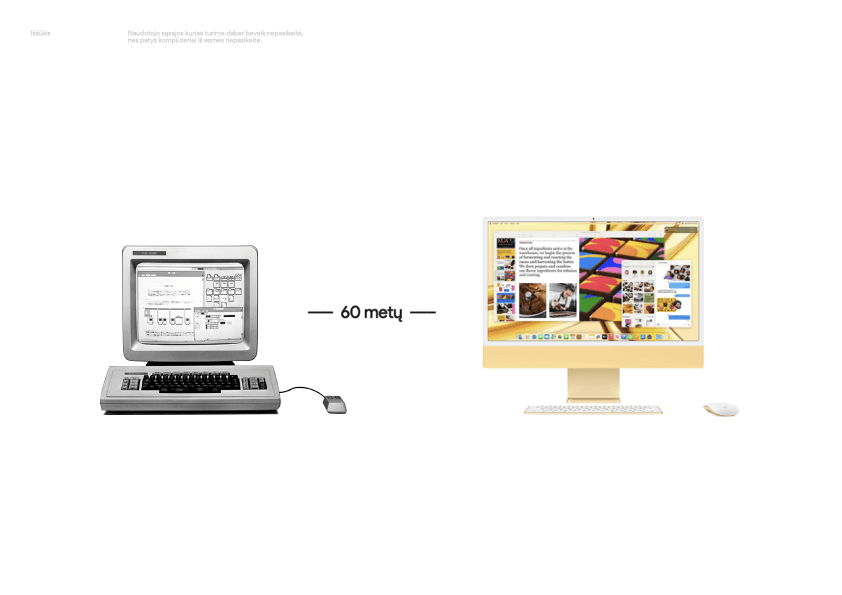

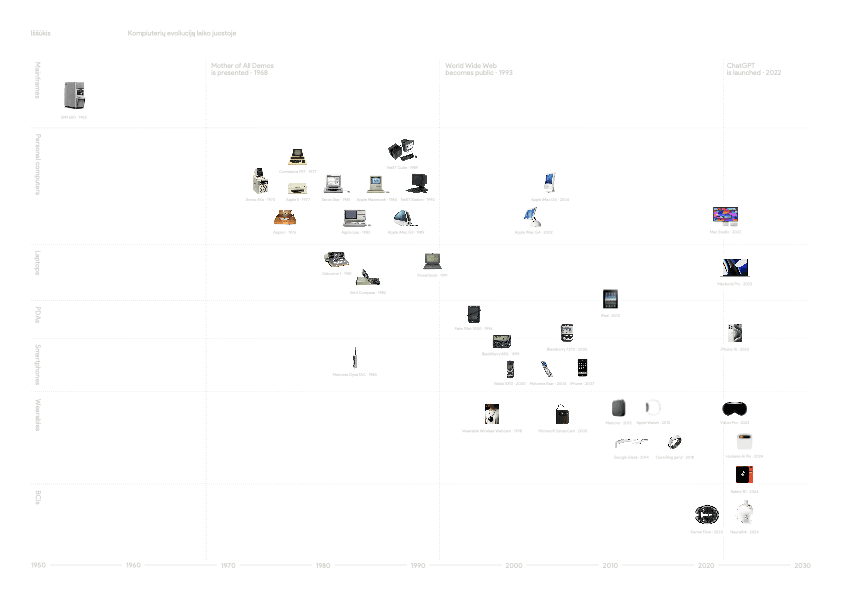

The human-computer interaction established more than 60 years ago has been defined by the technological limitations of that time - i.e. screen, keyboard, mouse. User interfaces of today have hardly changed, because computers themselves haven’t fundamentally changed.
Over the past decades, digital devices have taken over more and more areas of life, adapting to the individual,
to find love,
belonging,
understanding
and peace.
